Remove/Install Washer Fluid Reservoir Heat Exchanger - AR82.35-P-6006FR

Model 257, 290

with code 875 (Heated windscreen washer system)

Shown on model 257

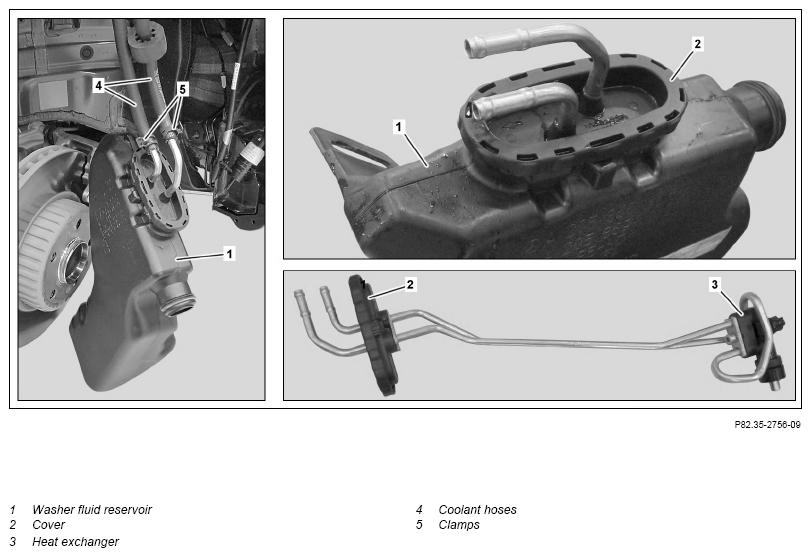

Fig 1: Washer Fluid Reservoir Heat Exchanger Component Location - Model 257

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning  from swallowing coolant.	Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses.	AS20.00-Z-0001-01A
Notice	Notes on coolant	Model 257 with engine 256, 264, 654, 656 with code 875 (Heated windscreen washer system) Model 290 with engine 177, 256 with code 875 (Heated windscreen washer system)	AH20.00-P-2080-01KOA
	Remove/install
1	Slowly open cap of coolant expansion reservoir and remove.	Correct coolant level.
2	Remove washer fluid reservoir (1).		AR82.35-P-6000FR
3	Unclip cap (2).
4	Guide heat exchanger (3) out of washer fluid reservoir (1).
5	Disconnect coolant hoses (4).	Clamp	Fig 2
6	Loosen clamps (5) and detach coolant hoses (4).	Collect escaping coolant in a suitable vessel.
7	Detach cap (2).	When replacing the heat exchanger (3).
8	Install in the reverse order.

Fig 2: Identifying Clamp (000 589 40 37 00)

Courtesy of MERCEDES-BENZ USA
