Remove/Install Upper Control Panel Control Unit - AR54.21-P-1262FR
Model 257
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||

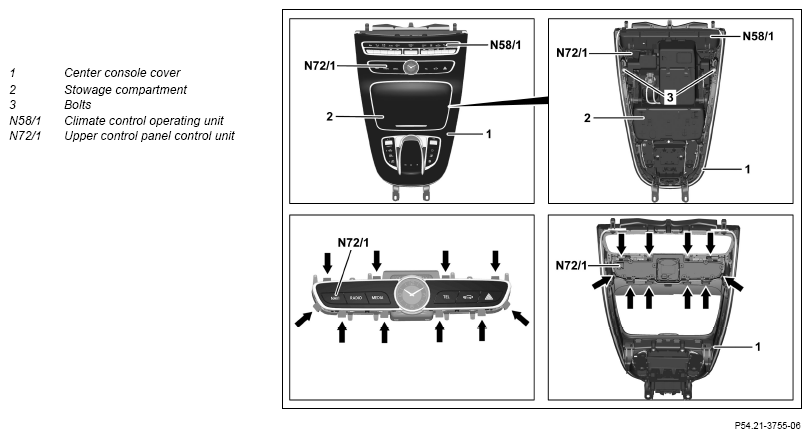

| 1 | Remove climate control operating unit (N58/1) | AR83.30-P-6630FR | |
| 2 | Remove bolts (3) and remove stowage compartment (2) | ||
| 3 | Unclip upper control panel control unit (N72/1) (arrows) | Fig 1 | |
| 4 | Install in the reverse order |
