Remove/Install Front Climate Control Operating Unit - AR83.30-P-6630FR

Model 257, 290

Shown on model 257

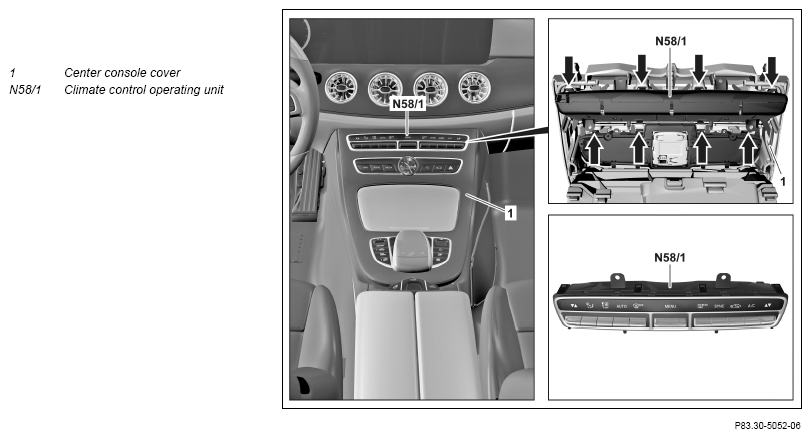

Fig 1: Front Climate Control Operating Unit Component Location - Model 257

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove/install
1	Remove center console cover (1).	Model 257	AR68.20-P-2350FR
		Model 290	AR68.20-P-2350FRX
2	Unclip air conditioning control panel (N58/1) (arrows) and remove.	Dismantling tool	Fig 2
3	Install in the reverse order.

Fig 2: Identifying Dismantling Tool (000 589 95 63 00)

Courtesy of MERCEDES-BENZ USA
