Remove/Install Front Sam Control Unit - AR54.21-P-1254FR
Model 257
Model 290

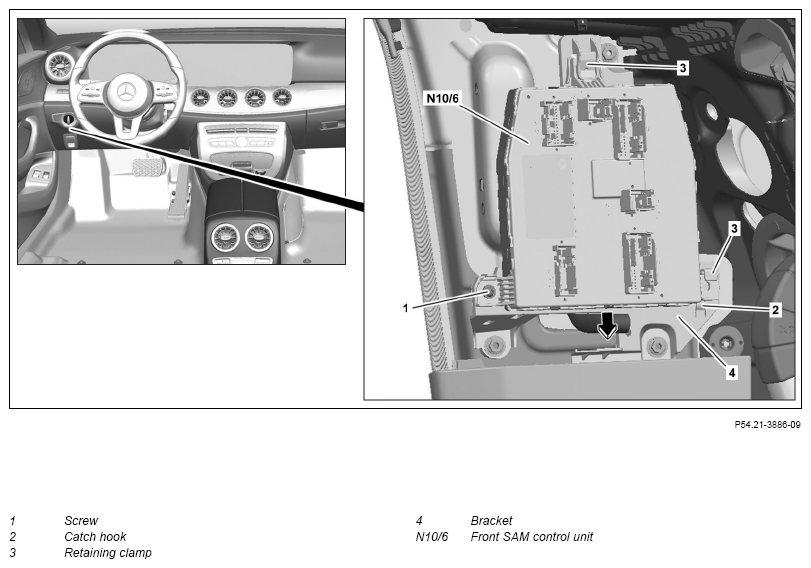

Shown on model 257.### 1#
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Commission front SAM control unit (N10/6). | When replacing front SAM control unit (N10/6) | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3 | Remove trim under driver's side instrument panel. | AR68.10-P-1501FR | |
| 4 | Unscrew bolt (1). | ||
| 5 | Release catch hook (2) and route front SAM control unit (N10/6) out of retaining clamps (3) in direction of arrow. | ||
| 6 | Pull front SAM control unit (N10/6) far enough out of holder (4) so that the electrical connectors are accessible. | ||
| 7 | Disconnect all electrical connectors from front SAM control unit (N10/6) and remove front SAM control unit (N10/6) from footwell. | ||
| 8 | Install in the reverse order. |
