Remove/Install Bottom Paneling For Dashboard On Driver Side - AR68.10-P-1501FR
Model 257, 290
Shown on model 257.### 1#
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Adjust steering column upward. | ||
| 2 | Adjust driver seat to the rear. | ||
| 3 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 4 | Remove front door sill. | ||
| 5 | Remove screw/bolts (3). | ||

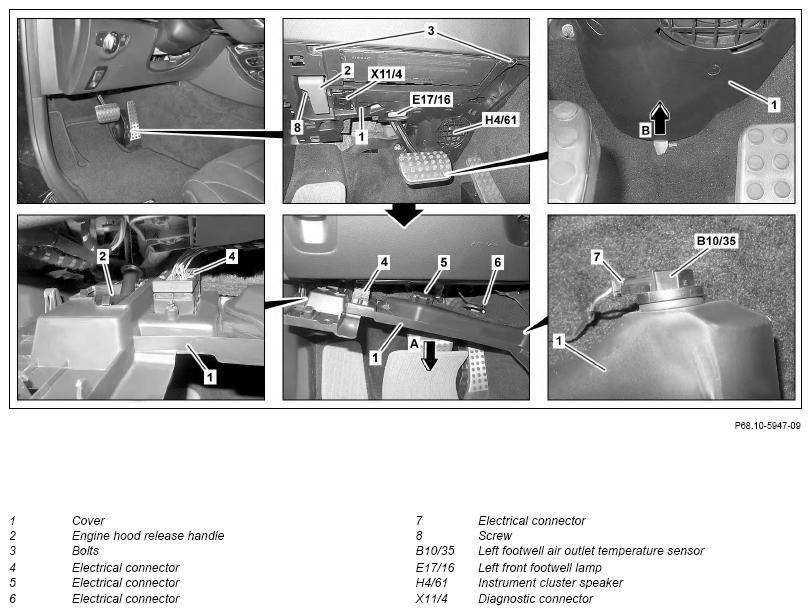

| 6 | Loosen trim (1) and lower (arrow A) until electrical connectors (4, 5, 6, 7) are accessible. | Fig 1 | |
| 7 | Disconnect electrical connectors (4, 5, 6, 7). | ||
| 8 | Remove screw/bolt (8). | ||
| 9 | Remove engine hood release handle (2) to the rear out of trim (1). | ||
| 10 | Unhook retaining tab of trim (1) from floor covering (arrow B) and remove trim (1). | ||
| 11 | Remove diagnostics connection (X11/4). | When replacing trim (1). | |
| 12 | Remove instrument cluster speaker (H4/61). | When replacing trim (1). | |
| 13 | Remove left footwell vent air outlet temperature sensor (B10/35) or right footwell vent air outlet temperature sensor. | When replacing trim (1). | |
| 14 | Remove left front footwell lamp (E17/16) or right front footwell lamp. | When replacing trim (1). | |
| 15 | Install in the reverse order. |
