Remove/Install Engine Sound Control Unit - AR54.21-P-0024FR
Model 257 with engine 256
with code M016 (Uprated engine)
except code 810 (Premium sound system)
except code 811 (High-End sound system)
Model 257
with code B63 (Engine sound via speakers)
except code 810 (Premium sound system)
except code 811 (High-End sound system)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Perform commissioning of engine sound control unit (N40/1) | When replacing the engine sound control unit (N40/1). | |
| AD00.00-P-2000-06FR | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove left luggage compartment lining at side | AR68.30-P-4800FR | |

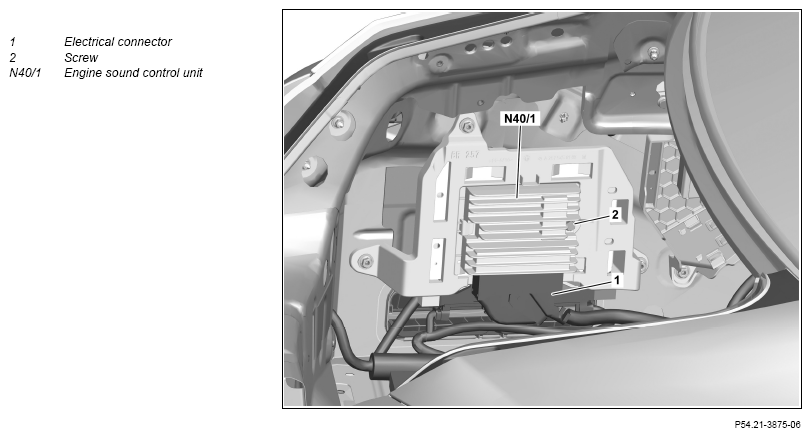

| 4 | Disconnect electrical connector (1) | ||
| 5 | Remove bolt (2) and remove engine sound control unit (N40/1) | ||
| 6 | Install in the reverse order |
