Remove/Install Side Paneling In Trunk - AR68.30-P-4800FR
Model 257

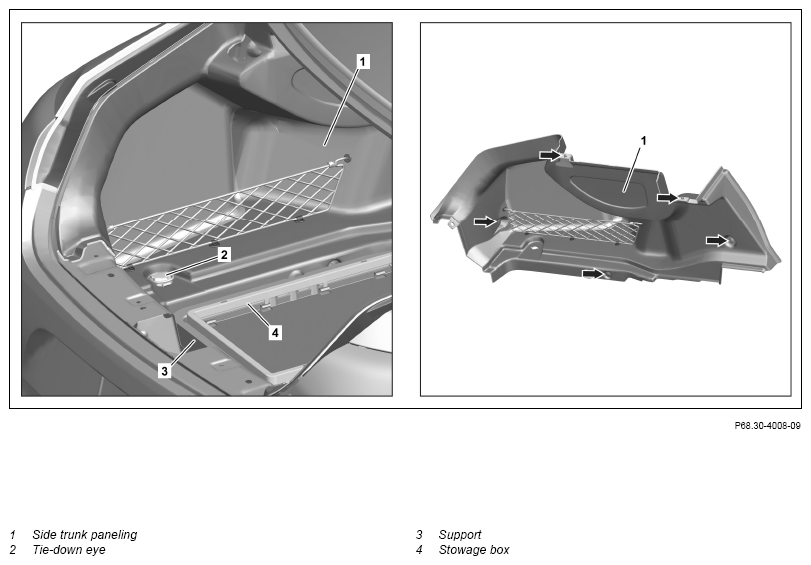

Shown on left side of vehicle on model 257 with code 287 (Folding seat backrests in rear) and with code B01 (48V technology) and with code 30P (Stowage Space Package)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove rear center assembly paneling | AR68.30-P-4786FR | |
| 2 | Remove trunk floor front section | AR68.80-P-0005FR | |
| 3 | Remove support (3) with stowage box (4) | Model 257 with code 30P (Stowage Space package) Model 257 with code B01 (48V technology) |
|
| 4.1 | Remove lashing eye (2) | Model 257 with code 287 (Folding seat backrests in rear passenger compartment) |
*BA68.50-P-1001-03J |
| 4.2 | Remove mesh hooks | Model 257 except code 287 (Folding seat backrests in rear passenger compartment) |
|
| 5 | Remove retaining clips (arrows) | ||
| 6 | Remove cover in side of trunk (1) | ||
| 7 | Install in the reverse order |
CARGO RETAINERS
| Number | Designation | Model 257 | |
|---|---|---|---|
| BA68.50-P-1001-03J | Bolt, cargo retainers/tie-down eye to body | Nm | 24 |
