Remove And Install DC/AC Converter Control Unit - AR54.21-P-1600FR
Model 257
with code U67 (230 V socket in rear passenger compartment)
Model 257
with code U80 (115 V socket)

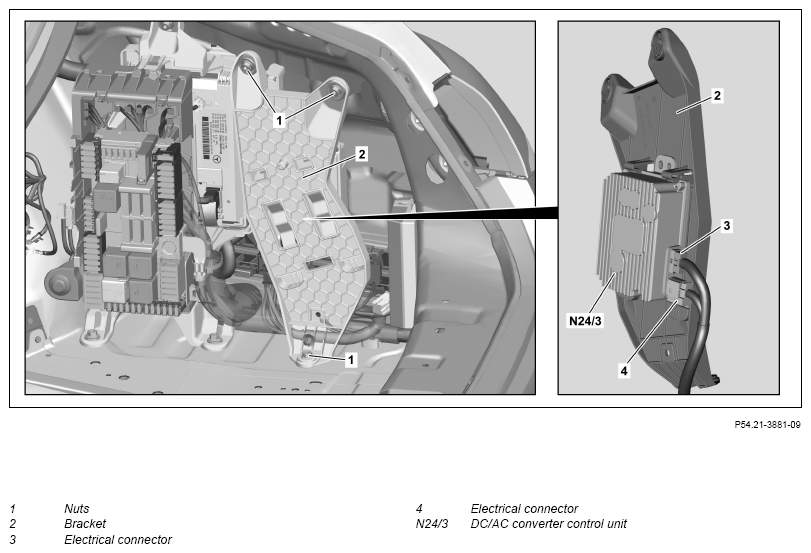

Shown on model 257 except code 865 (TV tuner)

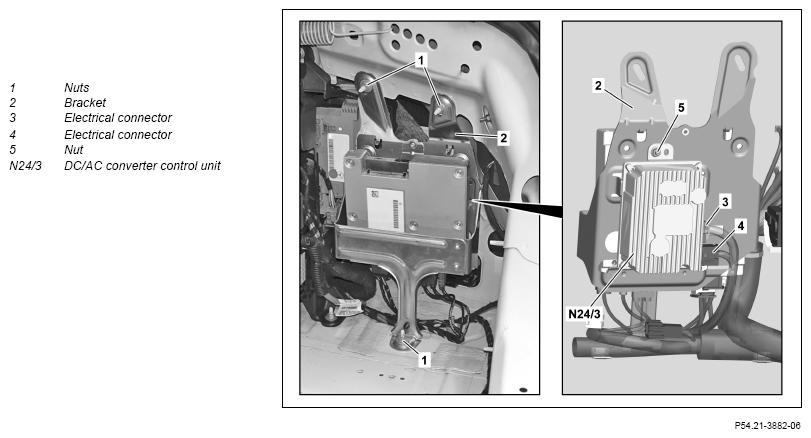

Shown on model 257 with code 865 (TV tuner)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | AS00.00-Z-0035-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on HANDS-FREE ACCESS | AH80.61-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove luggage compartment lining on right | AR68.30-P-4800FR | |
| 2 | Detach ground line of on-board electrical system battery | AR54.10-P-0003FR | |
| 3 | Unscrew nuts (1) and place holder (2) with attached electrical lines to one side | ||
| 4 | Detach electrical connections (3, 4) | ||
| 5 | Unscrew nut (5) | Model 257 with code 865 (digital TV) with code U67 (230 V socket in rear passenger compartment) Model 257 with code 865 (digital TV) with code U80 (115 V socket) |
|
| 6 | Detach DC/AC converter control unit (N24/3) from bracket (2) | ||
| 7 | Install in the reverse order |
