Remove/Install Brake Booster - AR43.10-P-0350FR

Model 257

Model 290

MODIFICATION NOTES

20.04.2018 Screw/bolt, upper struts to suspension strut tower mounting bracket Model 257 BA62.30-P-1001-02K

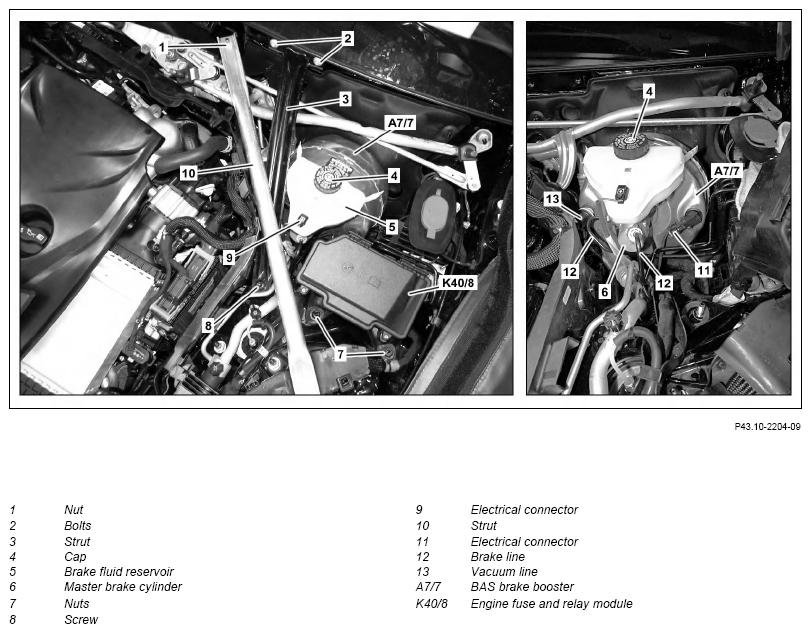

G14548972Courtesy of MERCEDES-BENZ USA

Shown on model 257

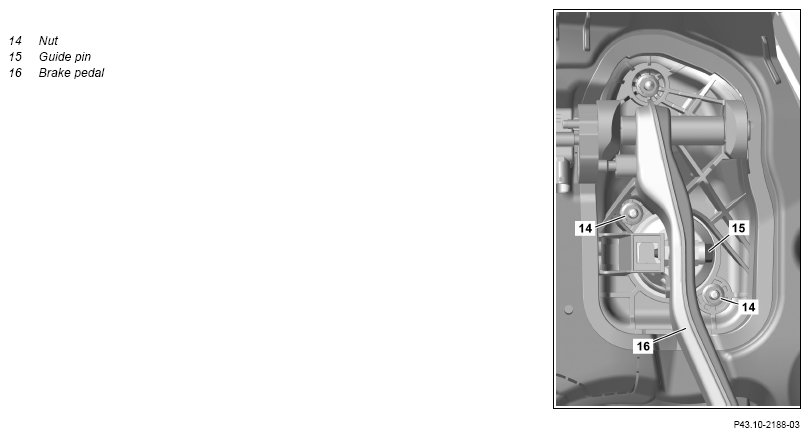

G14548973Courtesy of MERCEDES-BENZ USA
CAUTION Risk of poisoning  from swallowing brake fluid. Risk of injury  from skin and eye contact with brake fluid Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. AS42.50-Z-0001-01A
Topical note Notes on externally invisible brake fluid loss   AH42.10-P-9406-02A
Topical note Brake fluid notes   AH42.50-P-0001-01A
Topical note Notes on repairs to brake system   AH42.00-P-0003-01A
  Notes on safety-relevant components   AH00.00-Z-0019-01A
REMOVINGINSTALLING Remove/install
1 Reduce vacuum in BAS brake booster (A7/7) by operating the brake pedal (16) several times.
2 Remove left and right wiper arm.   AR82.30-P-6100FR
3 Remove air/water duct on driver's side.
4 Remove air/water duct on front passenger side.
5 Remove air/water duct under the wiper arms.
6 Remove strut (10).
Topical note Notes on threaded connections fastened using a tightening angle-based tightening process   AH00.00-P-0020-01A
    TORQUE SPECIFICATION Nut, upper struts to firewall *BA62.30-P-1002-02K
    TORQUE SPECIFICATION Screw/bolt, upper struts to suspension strut tower mounting bracket *BA62.30-P-1001-02K
7 Remove screws (2, 8) and take off strut (3). TORQUE SPECIFICATION Screw/bolt, lower strut to firewall *BA62.30-P-1004-02K
    TORQUE SPECIFICATION Screw/bolt, lower strut to suspension strut tower mounting bracket *BA62.30-P-1003-02K
8 Cover painted surfaces in the repair area. NOTES
Protect painted surfaces from brake fluid. Damage can otherwise be caused by escaping brake fluid.

9 Clean area around the cap (4) on brake fluid reservoir (5). NOTES
Before opening, clean area around the cap (4) thoroughly.
Otherwise dirt particles in the hydraulic component parts can result in malfunctions and total failure of the brake system.

    Assembly cleaner *BR00.45-Z-1028-04A
10 Unscrew cap (4) and remove sieve from brake fluid reservoir (5).
11 Extract brake fluid from brake fluid reservoir (5).
12 Seal brake fluid reservoir (5).
13 Disconnect electrical connector (9) from brake fluid level switch.
14 Unscrew nuts (7) and place engine fuse and relay module (K40/8) with connected lines to one side.
15 Clean master brake cylinder (6) in the area of the connections of the brake lines (12). NOTES
Thoroughly clean area around connecting points before opening the brake system. Otherwise minute dirt particles in the hydraulic component parts can result in malfunctions and total failure of the brake system.
IMPORTANT Do not use any compressed-air for cleaning when the brake system is open. Use clean, lint-free rag only.

    Assembly cleaner *BR00.45-Z-1028-04A
16 Remove brake lines (12) from master brake cylinder (6).
  Note on calculation of tightening torque when using insertion or socket tools with various   AH00.00-P-0015-01CW
    TORQUE SPECIFICATION Retaining screw, brake line to master brake cylinder *BA42.10-P-1003-04P
  effective lengths SPECIAL TOOL Box wrench bit Fig 2
17 Seal connection fittings on master brake cylinder (6) and brake lines (12). SPECIAL TOOL Record plug Fig 1
18 Pull vacuum line (13) out of BAS brake booster (A7/7).
19 Disconnect electrical connector (11) from brake vacuum sensor.
20 Remove trim under instrument panel on driver's side.   AR68.10-P-1501FR
21 Remove guide pin (15) from brake pedal (16). TORQUE SPECIFICATION Brake booster to brake pedal *BA43.10-P-1002-01J
22 Unscrew nuts (14) of BAS brake booster (A7/7). TORQUE SPECIFICATION Nut, brake booster carrier to front end *BA43.10-P-1001-01J
23 Push brake lines (12) carefully to one side and remove BAS brake booster (A7/7) from engine compartment. NOTES
Do not deform the brake lines (12). Otherwise the brake system may malfunction.
NOTES
Do not damage boot during removal/installation of BAS brake booster (A7/7). Otherwise the BAS brake booster (A7/7) may malfunction.

24 Remove master brake cylinder (6). When replacing the BAS brake booster (A7/7) AR42.10-P-0300FR
25 Install in the reverse order.
26 Bleed brake system.   AR42.10-P-0010FR
INSPECT Check
27 Perform brake test on test stand.
REFER TO MAINTENANCE     AP42.00-P-4290BA
BRAKE LINES, BRAKE HOSES

Number Designation Model 257 Model 290.658/659/661 except code B07/U69
BA42.10-P-1003-04P Retaining screw, brake line to master brake cylinder Nm 16 16
BRAKE LINES, BRAKE HOSES

Number Designation Model 290.658/659/661 with code B07/U69, model 290.679/688/689
BA42.10-P-1003-04P Retaining screw, brake line to master brake cylinder Nm 16
PNEUMATIC BRAKE BOOSTER

Number Designation Model 257 Model 290
BA43.10-P-1001-01J Nut, brake booster carrier to front end Nm 22 22
PNEUMATIC BRAKE BOOSTER

Number Designation Model 257 Model 290
BA43.10-P-1002-01J Brake booster to brake pedal Nm 22 22
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 257 Model 290
BA62.30-P-1001-02K Screw/bolt, upper struts to suspension strut tower mounting bracket Stage 1   Nm 35 35
Stage 2   Nm 50 50
Stage 3 Loosen ∠° 180 180
Stage 4   Nm 50 50
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 257 Model 290
BA62.30-P-1002-02K Nut, upper struts to firewall Nm 35 23
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 257 Model 290
BA62.30-P-1003-02K Screw/bolt, lower strut to suspension strut tower mounting bracket Nm 50 50
FROND END WITH FRONT REINFORCEMENT

Number Designation Model 257 Model 290
BA62.30-P-1004-02K Screw/bolt, lower strut to firewall Nm 23 23
Fig 1: Identifying Record Plug (129 589 00 91 00)
G11971934Courtesy of MERCEDES-BENZ USA
Fig 2: Identifying Box Wrench Bit (000 589 75 03 00)
G12939483Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1028-04A Assembly cleaner A 000 986 56 01
