Remove/Install Trunk Floor Front Section - AR68.80-P-0005FR

Model 257

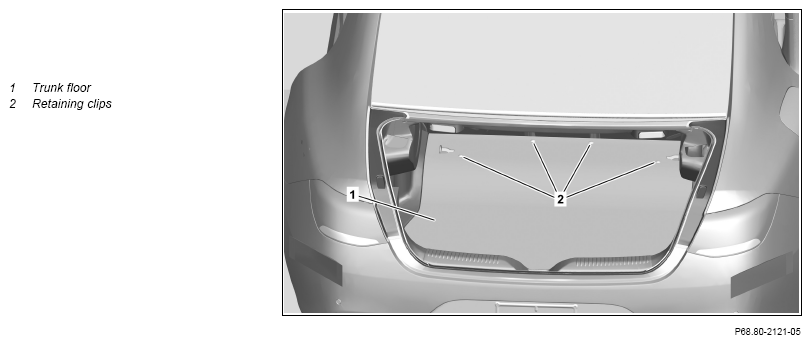

Shown on model 257 with code 287 (Folding rear seat backrests)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

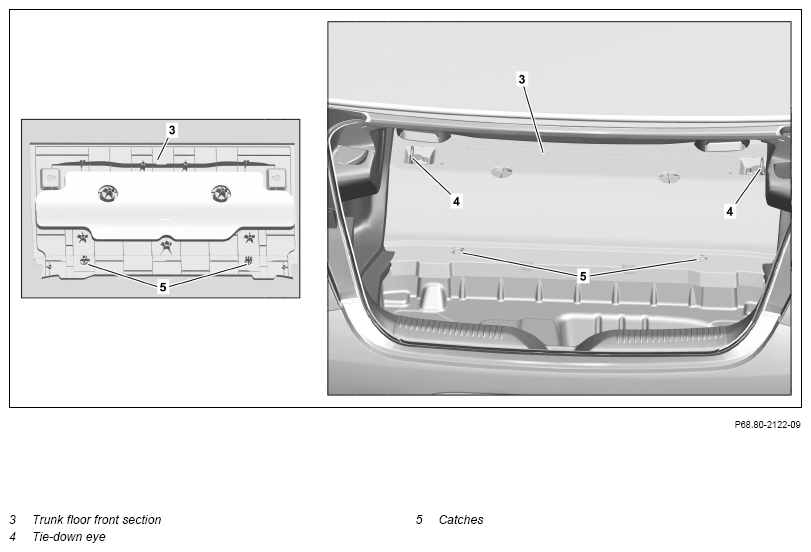

Shown on model 257 with code 287 (Folding rear seat backrests)

Courtesy of MERCEDES-BENZ USA

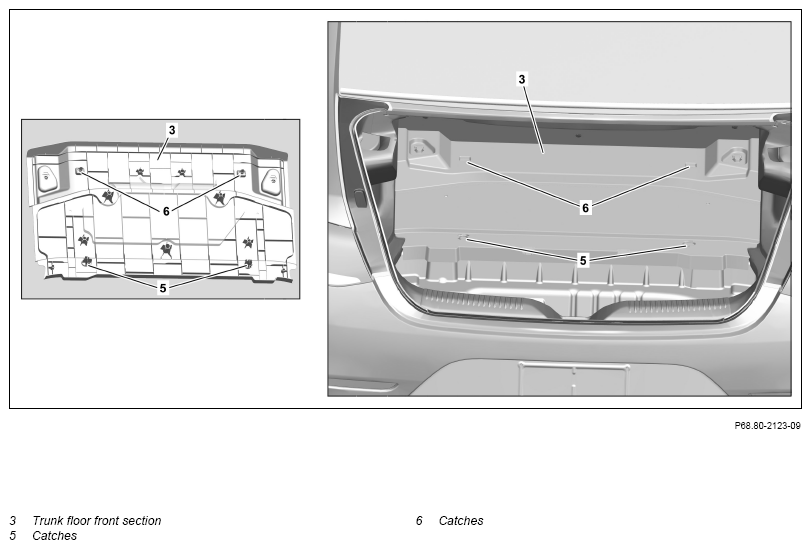

Shown on model 257 except code 287 (Folding rear seat backrests)

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Remove retaining clips (2) and trunk floor (1)	Model 257 except code 287 (Folding seat backrests in rear passenger compartment) Only two retaining clips (2) are installed.
2	Remove tie-down eyes (4)	Model 257 with code 287 (Folding seat backrests in rear passenger compartment) Bolt, cargo retainers/tie-down eye to body	*BA68.50-P-1001-03J
3	Release trunk floor front section (3) from the catches (6) with a suitable screwdriver	Model 257 except code 287 (Folding seat backrests in rear passenger compartment)
4	Release trunk floor front section (3) from the catches (5) with a suitable screwdriver
5	Unclip trunk floor front section (3) and remove toward rear	Long wedge	Fig 1
6	Install in the reverse order

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
