Remove/Install Front Floor Covering On Front Passenger Side - AR68.80-P-0008FR

Model 257

Model 290

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove floor mat.
2	Release front passenger seat and tilt toward the rear.	Do not disconnect electrical connectors.	AR91.10-P-1000FR

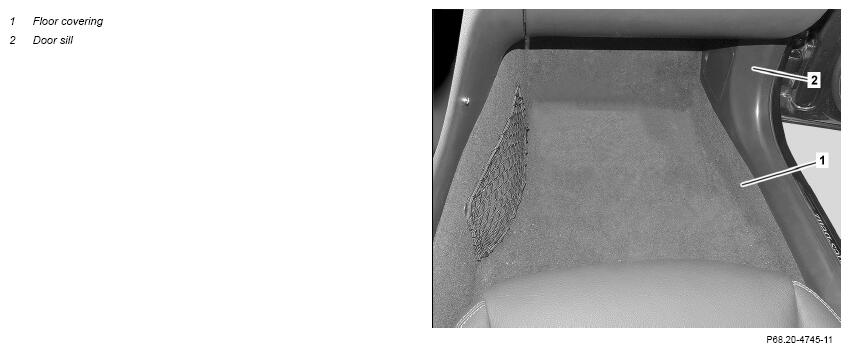

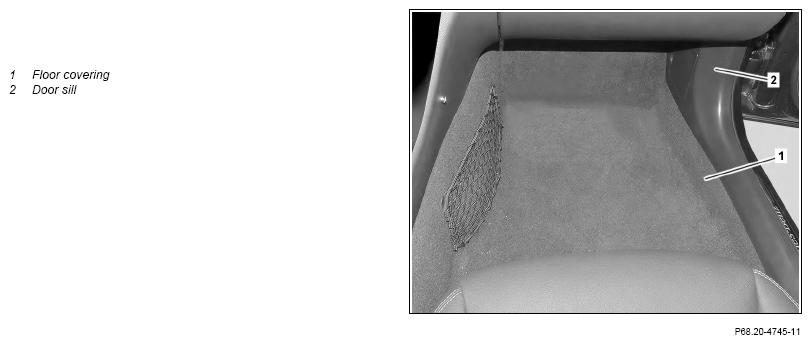

3	Remove door sill (2).
4	Remove trim below instrument panel on passenger side.		AR68.10-P-1502FR
5	Remove floor covering (1) from the front to the rear.	Position floor covering (1) below center console.
		Long wedge	Fig 1
6	Install in the reverse order.

Fig 1: Identifying Long Wedge (115 589 03 59 00)

Courtesy of MERCEDES-BENZ USA
