Remove/Install Front Seat - AR91.10-P-1000FR

Model 257

Model 290

Courtesy of MERCEDES-BENZ USA

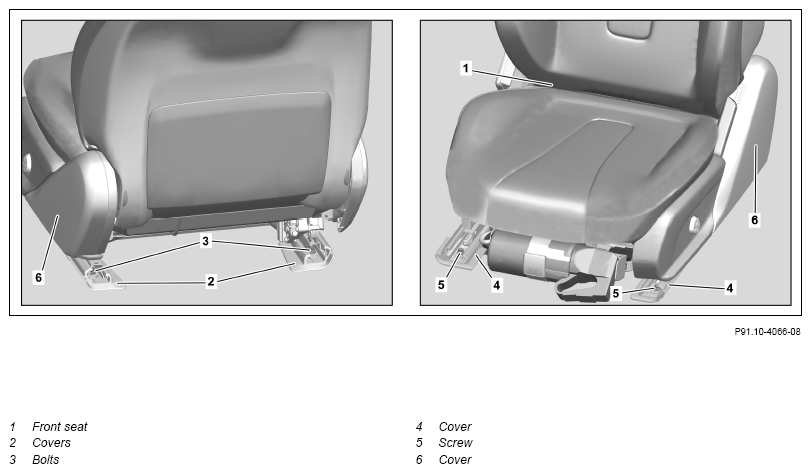

Shown on model 257 with code 682 (Fire extinguisher) and except code 555 (AMG Performance seats)

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Move steering column forward and all the way up.	When removing front seat (1) on driver's side.
2	Move front seat (1) forward and all the way up.
3	Remove bolts (3) from guide rails.	Bolt, front seat to vehicle floor	*BA91.10-P-1001-01T
4	Remove covers (2).
5	Move front seat (1) to the rear and all the way down.
6	Unclip trim (6) towards rear and remove.
7	Remove seat belt end fitting.	Model 257, 290 with code 460 (Canada version) Model 257, 290 with code 494 (US version)	AR91.40-P-1030-02FRA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
		Model 257, 290 except code 460 (Canada version) except code 494 (US version)	AR91.40-P-1030-02FR
8	Remove bolts (5).	Bolt, front seat to vehicle floor	*BA91.10-P-1001-01T
9	Remove covers (4).
10	Detach ground line of on-board electrical system battery.		AR54.10-P-0003FR
11	Tilt back front seat (1).	Ensure that lock pins of guide rails in vehicle floor are seated correctly.
12	Disconnect pneumatic line from underside of front seat (1).	Model 257, 290 with code 432 (Left and right dynamic multicontour seat)
13	Disconnect electrical connectors from underside of front seat (1).	The number of electrical connectors is dependent on the vehicle equipment.
14	Cover up center console, door sill and door sill.
	000 588 08 98 00 Cover		WS98.00-P-0014B
15	Remove front seat (1) from vehicle.	Carefully remove front seat (1) from vehicle. Otherwise vehicle components may be damaged. Helper required.
16	Put down front seat (1) and secure it against falling over.
17	Install in the reverse order.
