Remove/Install Panoramic Sliding Sunroof Wind Deflector Bearing - AR77.21-P-0102MFA

Model 118, 177

with code 413 (Automatic panoramic sliding sunroof)

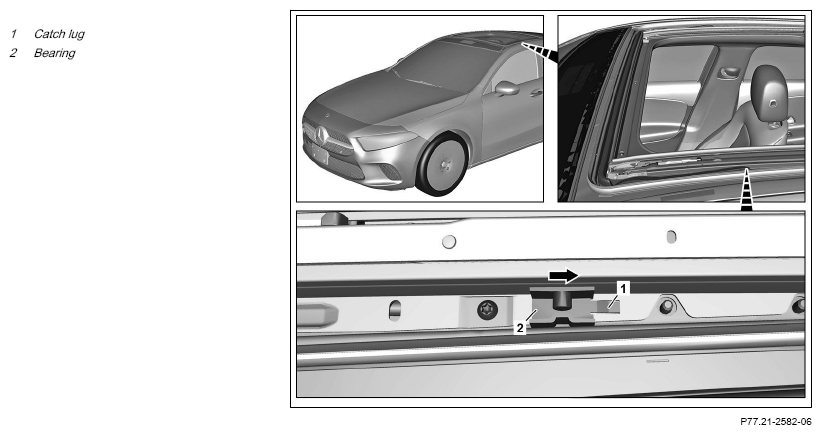

Shown on left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Remove wind deflector for panoramic sliding sunroof.		AR77.21-P-0101MFA
2	Lift catch tab (1) with a suitable tool, push bearing (2) out backward in direction of arrow and remove.	Carefully release and move out bearing (2). The guides may otherwise be damaged. : Ensure correct seat of bearing (2). The instructions are shown only for one side and must be carried out on both sides.
3	Install in the reverse order.
