Remove/Install Wind Deflector For Panoramic Sliding Sunroof - AR77.21-P-0101MFA

Model 118, 177

with code 413 (Panoramic sliding sunroof/glass roof)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install
1	Open panoramic sliding sunroof completely.
2	Switch off ignition and store transmitter key outside of transmitter range (min. 2 m).

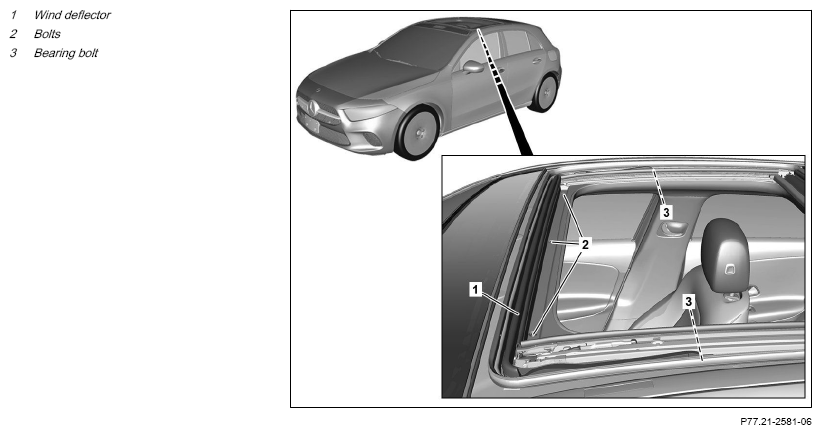

3	Unscrew bolts (2).
4	Unclip wind deflector (1) from guide rails.	Clipped once each on the left and right side of the vehicle.
5	Set up wind deflector (1) such that it points vertically upward.	: When replacing, press the springs of the wind deflector (1) forward to position the springs in their working area. The springs and wind deflector (1) will otherwise be damaged.
6	Push the wind deflector (1) forward in front of the bearing pin (3) and remove the wind deflector (1).
7	Install in the reverse order.
