Panoramic Sliding Sunroof Drive Unit, Basic Function - GF77.21-P-2002A
Model All (CAR)
with code 413 (Panoramic sliding sunroof/glass roof)
Overview
This document contains information on:
- General
- Vehicles with separate drive unit
- Vehicles with integrated drive unit
- Function

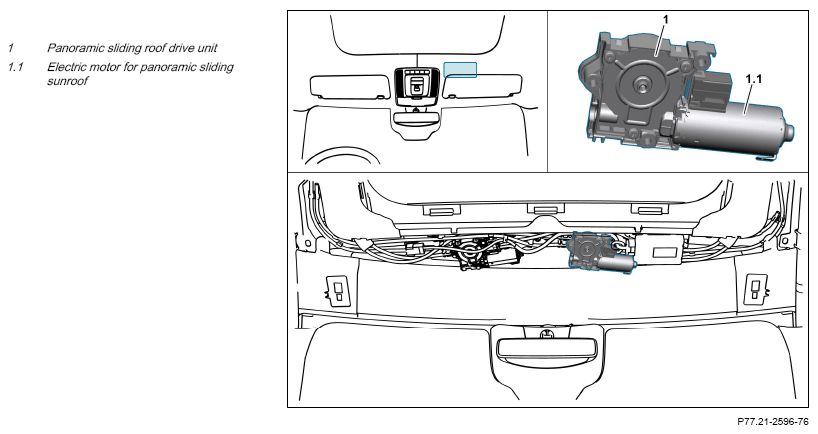

Sample illustration for vehicles with separate drive unit

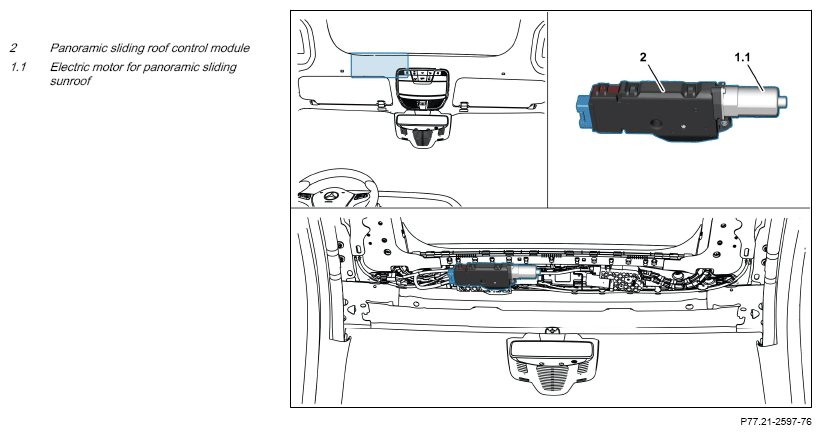

Sample illustration for vehicles with integrated drive unit
General
Depending on the vehicle, the panoramic sliding sunroof drive unit (1) is either a separate component part or forms a unit together with the panoramic sliding sunroof control unit.
The panoramic sliding sunroof drive unit (1)/panoramic sliding sunroof control module (2) is located on the front roof frame.
Vehicles with separate drive unit
The separate panoramic sliding sunroof control unit actuates the electric motor for the panoramic sliding sunroof (1.1) in the panoramic sliding sunroof drive unit (1).
Vehicles with integrated drive unit
The panoramic sliding sunroof control unit in the panoramic sliding sunroof control module (2) actuates the electric motor for the panoramic sliding sunroof (1.1).
Function
The following elements are integrated in the panoramic sliding sunroof drive unit:
- 2 Hall sensors (position and speed detection)
- Electric motor for panoramic sliding sunroof (1.1)
- Transfer case
The redirecting transmission of the panoramic sliding sunroof converts the rotating motion of the electric motor for the panoramic sliding sunroof (1.1) into a longitudinal motion. This changes the position of the sliding sunroof panel of the panoramic sliding sunroof. The installed Hall sensors record the motor speed and the position of the sliding sunroof panel.
| Function schematics | |||
| Function schematic, open/close panoramic sliding sunroof | Model 118, 167.3, 177, 243, 247 with code 413 (Panoramic sliding sunroof/glass roof) | PE77.21-P-2500-97A | |
| Model 167.1/9 with code 413 (Panoramic sliding sunroof/glass roof) Model 213, 238.3 as of model year 2021 with code 413 (Panoramic sliding sunroof/glass roof) | PE77.21-P-2500-97B | ||
| Model 223 with code 413 (Panoramic sliding sunroof/glass roof) | PE77.21-P-2500-97C | ||
| Model 206, 214, 236, 254 with code 413 (Panoramic sliding sunroof/glass roof) | PE77.21-P-2500-97D | ||
| Model 294, 295, 296, 297 with code 413 (Panoramic sliding sunroof/glass roof) | PE77.21-P-2500-97E | ||
| Component descriptions | |||
| Panoramic sliding roof system drive unit, component description | Model 223 with code 413 (Panoramic sliding sunroof/glass roof) | GF77.20-P-5213A | |
| Model 243 with code 413 (Panoramic sliding sunroof/glass roof) | GF77.20-P-5213B | ||
| Model 206 with code 413 (Panoramic sliding sunroof/glass roof) | GF77.20-P-5213C | ||
| Model 297 with code 413 (Panoramic sliding sunroof/glass roof) | GF77.20-P-5213D | ||
| Model 296 with code 413 (Panoramic sliding sunroof/glass roof) | GF77.20-P-5213G | ||
| Model 254 with code 413 (Panoramic sliding sunroof/glass roof) | GF77.20-P-5213H | ||
| Model 214 with code 413 (Panoramic sliding sunroof/glass roof) | GF77.20-P-5213K | ||
| Model 118, 177, 247 as of model year 2023 with code 413 (Panoramic sliding sunroof/glass roof) | GF77.20-P-5213L | ||
| Model 294 with code 413 (Panoramic sliding sunroof/glass roof) | GF77.20-P-5213N |
