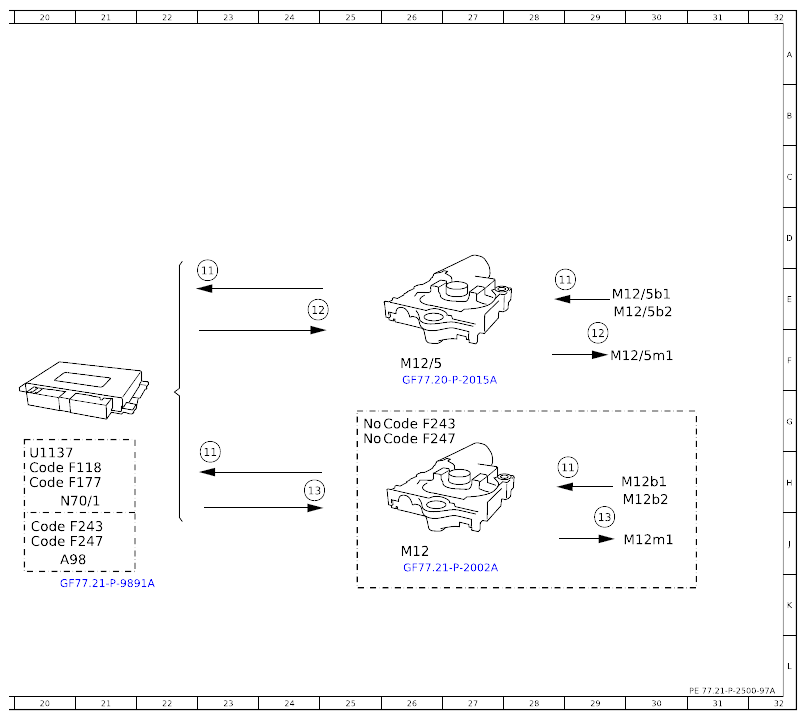

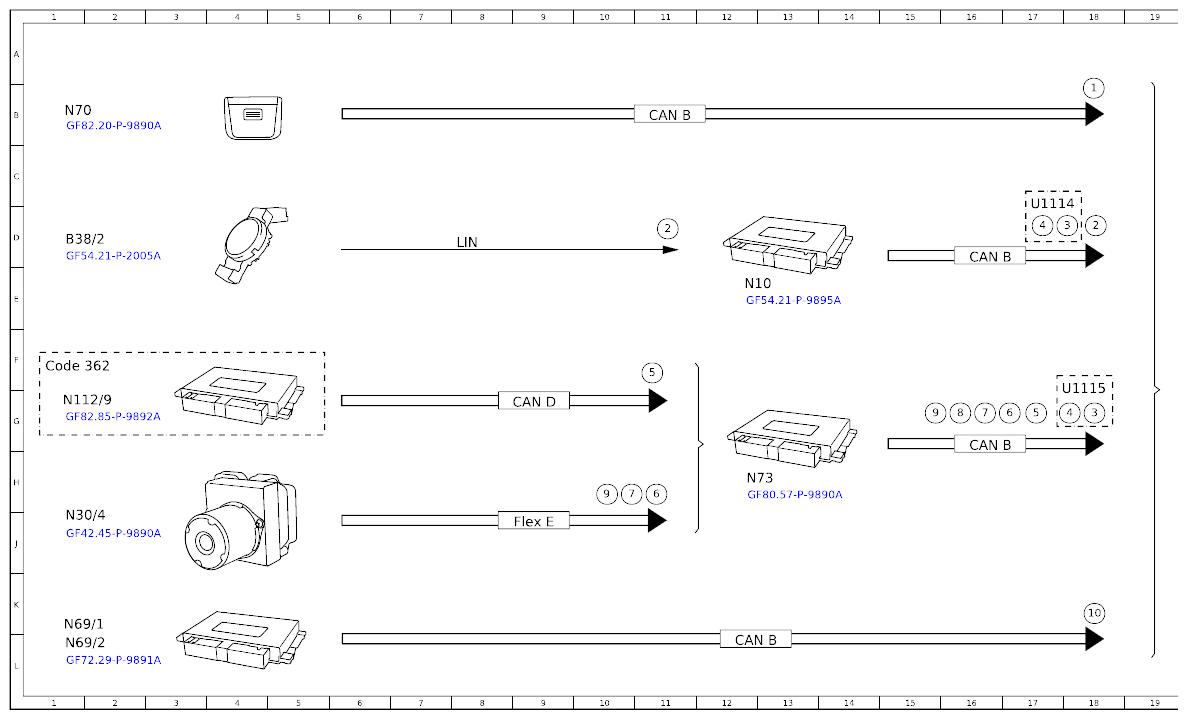

Function Schematic, Open/Close Panoramic Sliding Sunroof - PE77.21-P-2500-97A
Model 118, 167.3, 177, 243, 247 with code 413 (Panoramic sliding sunroof/glass roof)
| Code: | Designation: | Position: |
|---|---|---|
| 1 | Roof system switch, status | 18B |
| 10 | Door rotary tumbler switch, status | 18K |
| 11 | Hall sensors, signal | 23H |
| 11 | Hall sensors, signal | 28E |
| 11 | Hall sensors, signal | 28H |
| 11 | Hall sensors, signal | 23E |
| 12 | Front panoramic sliding sunroof roller sun blind motor, actuation | 24E |
| 12 | Front panoramic sliding sunroof roller sun blind motor, actuation | 29F |
| 13 | Panoramic sliding sunroof motor, actuation | 24H |
| 13 | Panoramic sliding sunroof motor, actuation | 29J |
| 2 | Rain closing, request | 18D |
| 2 | Rain closing, request | 11D |
| 3 | Convenience feature, status | 18D |
| 3 | Convenience feature, status | 18G |
| 4 | Convenience feature direction, signal | 17D |
| 4 | Convenience feature direction, signal | 18G |
| 5 | Open/close panoramic sliding sunroof, request | 17G |
| 5 | Open/close panoramic sliding sunroof, request | 11F |
| 6 | PRE-SAFE®, status | 17G |
| 6 | PRE-SAFE®, status | 11H |
| 7 | Adjust PRE-SAFE®, request | 16G |
| 7 | Adjust PRE-SAFE®, request | 10H |
| 8 | Circuit 15, status | 16G |
| 9 | Vehicle speed, signal | 15G |
| 9 | Vehicle speed, signal | 10H |
| A98 | Panoramic sliding sunroof control module | 20J |
| B38/2 | Rain/light sensor | 1D |
| CAN B | Interior CAN | 11B |
| CAN B | Interior CAN | 16D |
| CAN B | Interior CAN | 16G |
| CAN B | Interior CAN | 12L |
| CAN D | CAN for diagnosis | 9G |
| Code 362 | HERMES LTE | 1F |
| Code F118 | Model series 118 | 20H |
| Code F177 | Model series 177 | 20H |
| Code F243 | MODEL SERIES 243 | 26G |
| Code F243 | MODEL SERIES 243 | 20J |
| Code F247 | Model series 247 | 20J |
| Code F247 | Model series 247 | 26G |
| Flex E | Chassis FlexRay | 9J |
| LIN | Local Interconnect Network | 8D |
| M12 | Sliding roof drive unit | 26J |
| M12/5 | Front panoramic sliding sunroof roller sun blind drive unit | 26F |
| M12/5b1 | Hall sensor 1, front panoramic sliding sunroof roller sun blind | 30E |
| M12/5b2 | Hall sensor 2, front panoramic sliding sunroof roller sun blind | 30E |
| M12/5m1 | Front panoramic sliding sunroof roller sun blind motor | 30F |
| M12b1 | Hall sensor 1 | 30H |
| M12b2 | Hall sensor 2 | 30H |
| M12m1 | SR [SHD] motor | 30J |
| N10 | Central control module | 12E |
| N112/9 | HERMES control unit | 1G |
| N30/4 | Electronic Stability Program (ESP®) control unit | 1J |
| N69/1 | Driver door control unit | 1K |
| N69/2 | Front passenger door control unit | 1L |
| N70 | Overhead control panel control unit | 1B |
| N70/1 | Sliding roof control unit | 20H |
| N73 | EIS [EZS] control unit | 12H |
| U1114 | Valid for convenience feature via air recirculation button | 17D |
| U1115 | Valid for convenience feature via central locking system | 17G |
