Bottom Rear Center Section Install And Weld In - Ar64.20-P-1000-08MFC
Model 118
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1015-01NA | Liftgate/trunk lid to side wall | Dimension "M" | mm | 3, 5 (±1) | 3, 5 (±1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1043-13A | Countersunk-head blind rivet Z1 6.4x14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) | A 000 991 82 32 |
| BR00.45-Z-1056-07A | 1K-zinc dust paint | A 000 986 28 00 |
| BR00.45-Z-1162-02A | Parts kit for 2-component adhesive for body | A 012 989 17 71 |
The superordinate service document as well as the safety information in the service document must be observed.
- Install rear center section (1) and fit.
- Install trunk lid seal.
- Install striker eye.
- Check gap dimensions using
feeler gauge and adjust.
- Fix rear center section (1) in place.
- Remove trunk lid seal.
- Remove striker eye.

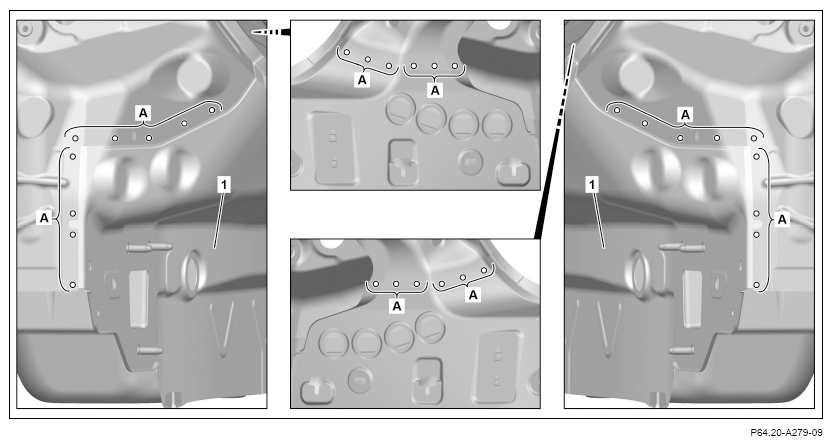

- Drill rivet holes in rear-end center section (1) with Ø 6.7 mm through existing holes in body and deburr (areas A).
- Remove rear center section (1).
- Deburr rivet holes on rear center section (1) and body on both sides.
- Remove drill chips.
- Coat insides of riveted joints that will not be bonded with zinc dust paint.

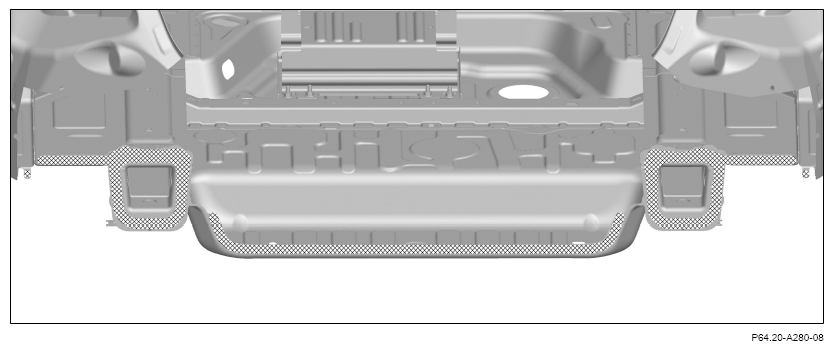

- Apply 2-component adhesive in cross-hatched areas on body.
Observe pretreatment of bonding surfaces and manufacturer's specifications for drying and processing time of 2-component adhesive.
- Install rear center section (1) and fix in place.

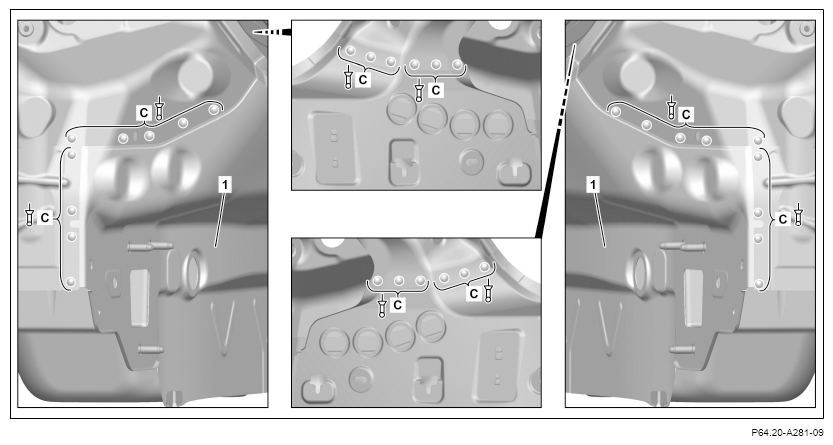

- Rivet rear-end center section (1) with Ø 6.4x14.0 mm countersunk-head blind rivets (areas C).

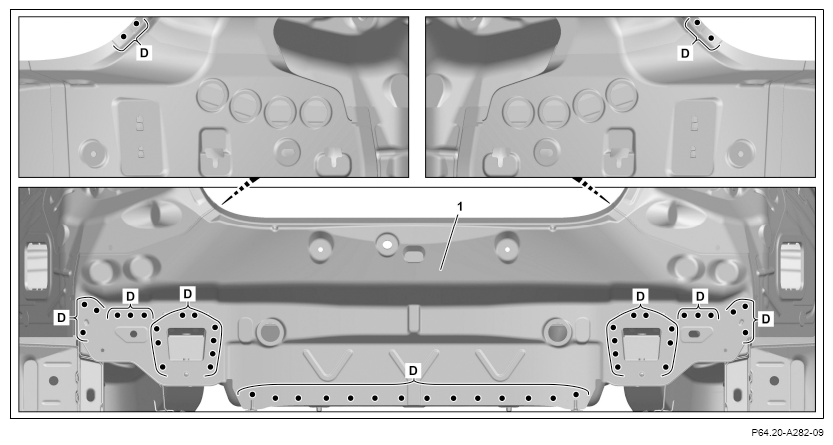

- Rear-end center section (1)
(areas D).
