Hoods, Doors And Lids Gap Dimensions - Ar60.00-P-0700-01MFC
Model 118
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1001-01NA | Engine hood to bumper | Dimension "A" | mm | 3 (±1) | 3 (±1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1002-01NA | Engine hood to fender | Dimension "B" | mm | 3 (±0, 5) | 3 (±0, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1003-01NA | Headlamp top to bumper | Dimension "C1" | mm | 2.5 (-05/+1.5) | 2.5 (-05/+1.5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1004-01NA | Headlamp front to bumper | Dimension "C2" | mm | 2, 0 (±1, 5) | 2, 0 (±1, 5) |
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1005-01NA | Headlamp bottom to bumper | Dimension "C3" | mm | 1, 5 (±1) | 1, 5 (±1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1006-01NA | Headlamp to fender | Dimension "D" | mm | 2 (±1) | 2 (±1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1007-01NA | Fender to bumper at front | Dimension "E" | mm | 0 (+0, 5) | 0 (+0, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1008-01NA | Fender to side wall (A-pillar) | Dimension "F" | mm | 2 (-0, 5/+1) | 2 (-0, 5/+1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1009-01NA | Front door to fender | Dimension "G" | mm | 4 (±0, 5) | 4 (±0, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1010-01NA | Front door to rear door | Dimension "H" | mm | 4 (±0, 5) | 4 (±0, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1011-01NA | Rear door to side wall | Dimension "I" | mm | 3, 5 (±0, 5) | 3, 5 (±0, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1012-01NA | Fuel filler flap/fuel filler flap hybrid to side wall (circumferential) | Dimension "J" | mm | 2 (±0, 5) | 2 (±0, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1013-01NA | Roof spoiler to side wall | Dimension "K" | mm | - | 4, 5 (±1) |
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1014-01NA | Roof spoiler to roof | Dimension "L" | mm | - | 4, 5 (-1/+1, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1015-01NA | Liftgate/trunk lid to side wall | Dimension "M" | mm | 3, 5 (±1) | 3, 5 (±1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1016-01NA | Liftgate/trunk lid to bumper at rear | Dimension "N" | mm | 6 (±1) | 6 (±1, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1017-01NA | Outer tail lamp to side wall | Dimension "O" | mm | 1, 5 (±0, 5) | 1, 5 (±0, 5) |
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1018-01NA | Outer tail lamp to bumper at rear | Dimension "P" | mm | 1, 5 (+1) | 1, 5 (+1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1019-01NA | Outside of taillamp to inside of taillamp | Dimension "Q" | mm | 3, 5 (-0.5/+1) | 3, 5 (-0.5/+1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1020-01NA | Liftgate/trunk lid to inner tail lamp (top) | Dimension "R" | mm | 1 (±0, 5) | 1 (±0, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1021-01NA | Liftgate/trunk lid to inner tail lamp (bottom) | Dimension "S" | mm | 1, 5 (-0, 5/+1) | 1, 5 (-0, 5/+1) |
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1022-01NA | Bumper at rear to side wall | Dimension "T" | mm | 0 (+0, 5) | 0 (+0, 5) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1023-01NA | Trunk lid to rear window | Dimension "U" | mm | 7, 0 (± 2, 0) | - |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
GAP DIMENSIONS
| Number | Designation | Model 118.3 | Model 118.6 | ||
|---|---|---|---|---|---|
| BE60.00-P-1024-01NA | Longitudinal member panel to front door/rear door | Dimension "V" | mm | 5 (±1) | 5 (±1) |
| For picture, see | AR60.00-P-0700-01MFC | AR60.00-P-0700-01MFC | |||
- Check gap dimensions on hoods, doors and lids with
feeler gauge as per the drawings.
Adjust hoods, doors and lids as per the drawings. The gap should not run wedge-shaped or be too narrow at points. Deviations from parallel gap should be max. 1 mm over the entire length. If the inside clearance is too large or too small, the movable body parts must be centered accordingly. The reference measurements apply only for repair work on vehicles damaged in accidents.

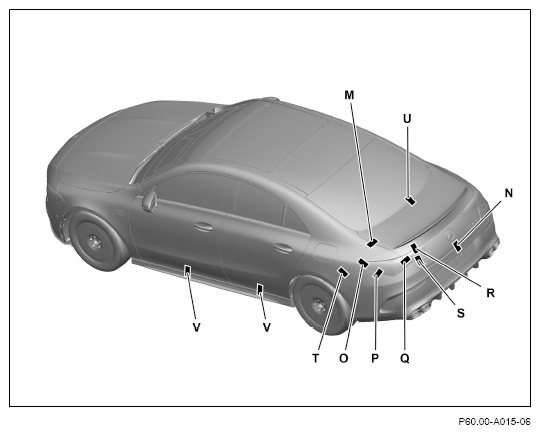

Model 118.3

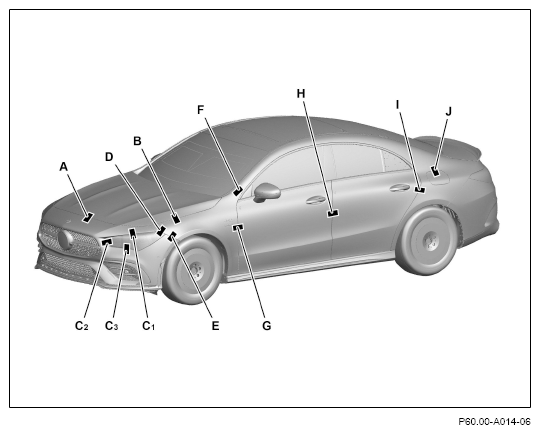

Model 118.3

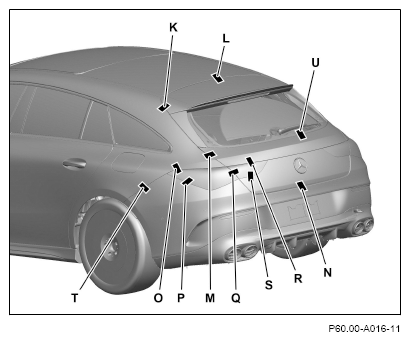

Model 118.6
