Remove/Install Glove Compartment - AR68.10-P-1400MFA
Model 118, 177, 243, 247
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 2 | Remove bottom paneling for instrument panel on passenger side | AR68.10-P-1502MFA | |
| 3 | Remove edge guard in working area | ||

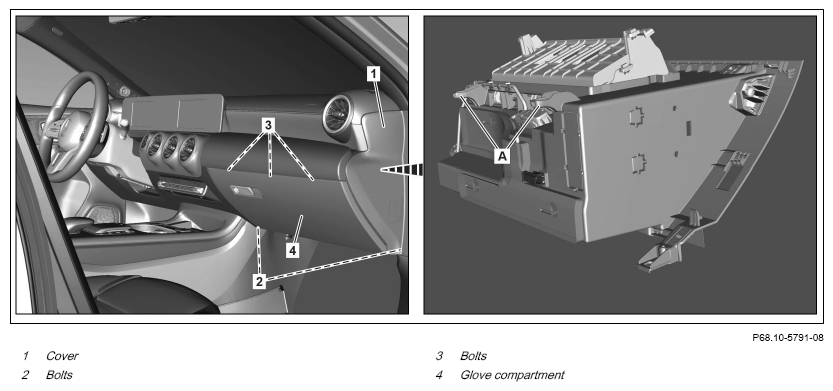

| 4 | Unclip cover (1) | ||
| 5 | Unscrew bolts (2) | ||
| 6 | Remove screws (3) and glove compartment housing (4) until the electrical connectors are accessible | Do not crush or kink or subject electric lines to tension. This will result in damage to the electric lines and can impair their function. |
|
| 7 | Release and disconnect electrical connections | ||
| 8 | Remove glove box (4) | ||
| 9 | Install in the reverse order |
