Replace Radial Sealing Rings On Side Of Rear Axle Center Assembly - AR35.31-P-0545LW

Model 205, 253 (except 253.992/993)

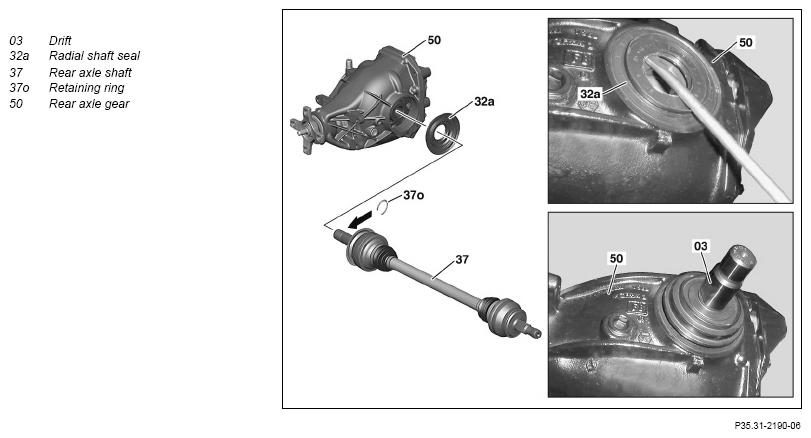

Fig 1: Radial Sealing Rings On Side Of Rear Axle Center Assembly Component Location - Model 205

Courtesy of MERCEDES-BENZ USA

	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove
1	Remove corresponding rear axle shaft (37).	Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993)	AR35.30-P-0621LW
		Model 205.386/387/486/487 Model 253.388/389/988/989	AR35.30-P-0621MNA
2	Use suitable tool to pry out radial shaft sealing ring (32a) from rear axle differential (50).	Do not damage seat surface of radial shaft sealing ring (32a) in rear axle differential (50). Otherwise leaks may occur.
3	Clean seat surface of radial shaft sealing ring (32) in rear axle differential (50).	Assembly cleaner	*BR00.45-Z-1028-04A
4	Check seat surface of radial shaft sealing ring (32a) in rear axle differential (50) for damage.	If damage is present, ↓ Replace rear axle differential (50).
		Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993)	AR35.31-P-0520LW
		Model 205.386/387/486/487 Model 253.388/389/988/989	AR35.31-P-0522MNA
	Install
5	Coat sealing lip of new radial shaft sealing ring (32a) with transmission oil.
	Universal hypoid gear oils (specification 235.7		BB00.40-P-0235-07A
		Do not apply any oil to the seat surface in the rear axle differential (50) and around the outer circumference of the radial shaft sealing ring (32a). Otherwise leaks may occur.
6	Press in new radial shaft sealing ring (32a) with drift (03) far enough that the drift (03) makes contact at the rear axle differential (50)	Drift	Fig 2
7	Replace retaining ring (37o) at inner splined profile of corresponding rear axle shaft (37).
8	Install corresponding rear axle shaft (37).	Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993)	AR35.30-P-0621LW
		Model 205.386/387/486/487 Model 253.388/389/988/989	AR35.30-P-0621MNA
9	Check and correct oil level in rear axle differential (50).	Model 205 (except 205.386/387/486/487), 253 (except 253.388/389/988/989/992/993)	AR35.31-P-0520-03LW
		Model 205.386/387/486/487 Model 253.388/389/988/989	AR35.31-P-0520-08MNA
		Model 253 (except 253.388/389/988/989/992/993) except code 700 (Vehicle production location China) Filling capacity	*BF35.31-P-1001-02B
		Model 253.388/389/988/989Filling capacity for rear axle differential with differential lock	*BF35.31-P-1003-02B
		Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Vehicle production location China) ALU rear axle differential filling capacity	*BF35.31-P-1002-01U
		Model 205.086/087/286/287/386/387/486/487Filling capacity for rear axle differential with differential lock	*BF35.31-P-1003-01U
		Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Vehicle production location China) FE rear axle differential filling capacity	*BF35.31-P-1001-01U
		Oil filler screw of rear axle differential	*BA35.31-P-1002-02H
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
		Sealant, Omnifit 100H (50 g)	*BR00.45-Z-1061-01A
10	Check rear axle differential (50) for leak tightness.

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 205	Model 253
BA35.31-P-1002-02H	Oil filler screw of rear axle differential	Nm	50	50

REAR AXLE GEAR

Number	Designation			Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Vehicle production location China)
BF35.31-P-1001-01U	FE rear axle differential filling capacity	FE HAG187	Liter	0, 85
		Specification		BB00.40-P-0235-07A
		FE HAG200	Liter	1, 0
		Specification		BB00.40-P-0235-07A
		FE HAG215	Liter	1, 1
		Specification		BB00.40-P-0235-07A
		FE HAG225	Liter	1, 3
		Specification		BB00.40-P-0235-07A

REAR AXLE GEAR

Number	Designation				Model 253 (except 253.388/389/988/989/992/993) except code 700 (Vehicle production location China)
BF35.31-P-1001-02B	Filling capacity	ALU rear axle differential 183		Liter	0, 8
		ALU rear axle differential 183	Specification		BB00.40-P-0239-71A
		ALU rear axle differential 197		Liter	0, 9
		ALU rear axle differential 197	Specification		BB00.40-P-0239-71A
		ALU HAG205		Liter	1, 0
		ALU HAG205	Specification		BB00.40-P-0239-71A

REAR AXLE GEAR

Number	Designation		Model 205 (except 205.086/087/286/287/386/387/486/487) except code 700 (Vehicle production location China)
BF35.31-P-1002-01U	ALU rear axle differential filling capacity	ALU HAG183	0, 8
BF35.31-P-1002-01U	ALU rear axle differential filling capacity	Specification	BB00.40-P-0239-71A

REAR AXLE GEAR

Number	Designation		Model 205.086/087/286/287/386/387/486/487
BF35.31-P-1003-01U	Filling capacity for rear axle differential with differential lock	Liter	1, 2
BF35.31-P-1003-01U	Specification		BB00.40-P-0235-61A

REAR AXLE GEAR

Number	Designation		Model 253.388/389/988/989
BF35.31-P-1003-02B	Filling capacity for rear axle differential with differential lock	Liter	1, 2
	Specification		BB00.40-P-0235-61A
	Overview of specified transmission oils		-
	Approved axle gear oils		-

Fig 2: Identifying Drift (205 589 00 15 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
BR00.45-Z-1046-04A	Loctite 7063 (400 ml) cleaning spray	A 001 986 71 71 09
BR00.45-Z-1061-01A	Sealant, Omnifit 100H (50 g)	A 002 989 23 71
