Remove/Install Track Rod - AR35.20-P-0109LWS
Model 205.064/086/087/264/286/287/364

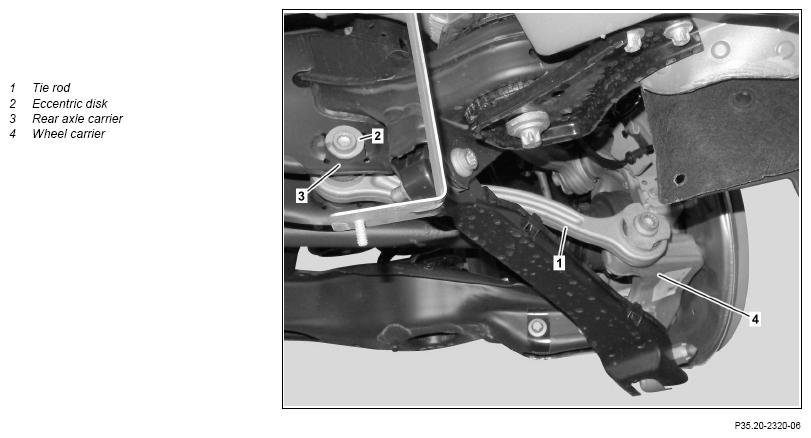

Shown on left side of vehicle on model 205.064
| Notice | Notes on handling, transport and storage of composite brake disks | AH42.10-P-9406-12LF | |
| Notice | Notes on threaded connections fastened using a tightening angle-based tightening process | AH00.00-P-0020-01A | |
| Notice | Notes on handling, transport and storage of ceramic brake disks | AH42.10-P-9406-13A | |
| Notice | Notes on self-locking nuts and bolts | AH00.00-P-0001-01KOA | |
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1.1 | Remove rear axle | When removing the right-hand tie rod (1). | |
| AR35.10-P-0010LW | |||
| 1.2 | Remove left rear wheel | When removing left tie rod (1). | |
| AR40.10-P-1102A | |||
| 2 | Remove left underfloor paneling in area of tie rod (1) | When removing left tie rod (1). | |
| AR61.30-P-1001LW | |||
| 3 | Mark installation position of eccentric disk (2) | ||
| 4 | Remove tie rod (1) from rear axle carrier (3) | ||
| *BA35.20-P-1002-04M | |||
| Fig 2 | |||
| 5 | Detach tie rod (1) from wheel carrier (4) and remove | *BA35.20-P-1001-04M | |
| Fig 2 | |||
| Check | |||
| 6 | Check tie rod (1) for condition and signs of damage | If a problem arises ↓ Replace tie rod (1). |
|
| 7 | Install in the reverse order | ||
| 8 | Perform wheel alignment check | AR40.20-P-0200LW |
TIE ROD
| Number | Designation | Model 205 | ||
|---|---|---|---|---|
| BA35.20-P-1001-04M | Bolt, tie rod to wheel carrier | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | ||
TIE ROD
| Number | Designation | Model 205 | |||
|---|---|---|---|---|---|
| BA35.20-P-1002-04M | Self-locking nut, tie rod to rear axle carrier | When removing the tie rod | Stage 1 | Nm | 50 |
| Stage 2 | ∠° | 90 | |||
| When adjusting the toe | Nm | 110 | |||
