Remove/Install Front Elastomer Bearing For Rear Axle Differential Mounting - AR35.10-P-0053MNA

Model 205.386/387/486/487

Model 253.388/389/988/989

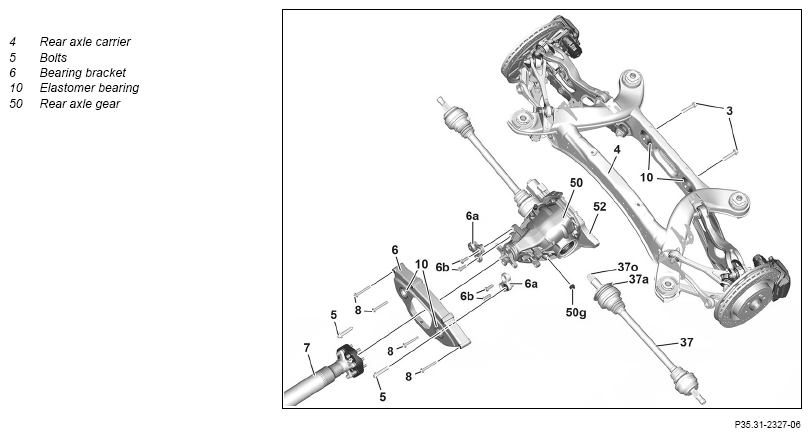

Fig 1: Front Elastomer Bearing For Rear Axle Differential Mounting Component Location - Model 205.386/387/486/487

Courtesy of MERCEDES-BENZ USA

Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove rear axle differential (50) from rear axle carrier (4)		AR35.31-P-0522MNA
2	Release bolts (5) and remove bearing bracket (6) from rear axle differential (50)	Bolt, rear axle differential to bearing bracket	*BA35.10-P-1007-01H
3	Clamp bearing bracket (6) into vise
4	Press elastomer bearings (10) out of bearing bracket (6)		AR35.10-P-0053-01MNA
		Hydraulic cylinder	Fig 5
		Extraction and installation tool	Fig 4
		Hand pump	Fig 3
		Hydraulic hose (complete)	Fig 6
		Extraction and insertion tool	Fig 2
5	Install in the reverse order.

REAR AXLE CARRIER

Number	Designation		Model 205	Model 253
BA35.10-P-1007-01H	Bolt, rear axle differential to bearing bracket	Nm	170	170

Fig 2: Identifying Extraction And Insertion Tool (204 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Extraction And Installation Tool (221 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hydraulic Cylinder (001 589 60 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 6: Identifying Hydraulic Hose - Complete (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA
