Press Out/In Front Elastomer Bearing For Rear Axle Differential Transmission Mounting - AR35.10-P-0053-01MNA

Model 205.386/387/486/487

Model 253.388/389/988/989

Fig 1: Identifying Extraction And Insertion Tool (204 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 2: Identifying Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Installation Tool (221 589 01 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Identifying Hydraulic Cylinder (001 589 60 33 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Identifying Hydraulic Hose - Complete (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Remove

Required special tools:

Hydraulic cylinder (07) 001 589 60 33 00

The following tool is required from the extraction and insertion tool 221 589 01 43 00:

The following tools are required from the extraction and insertion tool 204 589 01 43 00:

Attach hydraulic cylinder (07) with hydraulic hose (023) to hand pump (021).

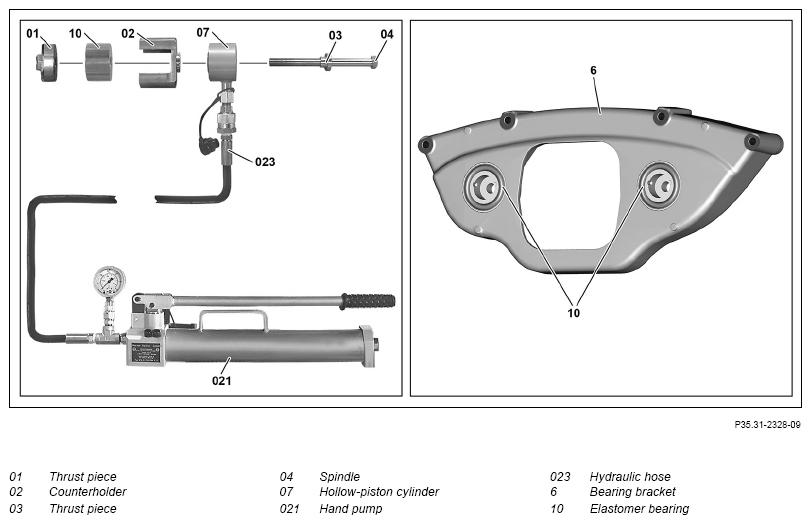

Position spindle (04), thrust piece (03), hydraulic cylinder (07), counterholder (02) and thrust piece (01) on bearing bracket (6) and elastomer bearing (10).
Press elastomer bearing (10) out of bearing bracket (6).
If hydraulic cylinder (07) has reached its maximum stroke, drain pressure on hand pump (021), and screw spindle (04) further into thrust piece (01), then repeat press-out procedure.

Courtesy of MERCEDES-BENZ USA

Install

Required special tools:
- Hydraulic cylinder (07) 001 589 60 33 00
- Hydraulic hose (023) 652 589 00 33 23
- Hand pump (021) 652 589 00 33 21
The following tools are required from the extraction and insertion tool 204 589 01 43 00:
- Thrust piece (03) 204 589 01 43 03
- Spindle (04) 204 589 01 43 04
- End stop (06) 204 589 01 43 06
The following tool is required from the extraction and insertion tool 221 589 01 43 00:
- Thrust piece (05) 221 589 01 43 05

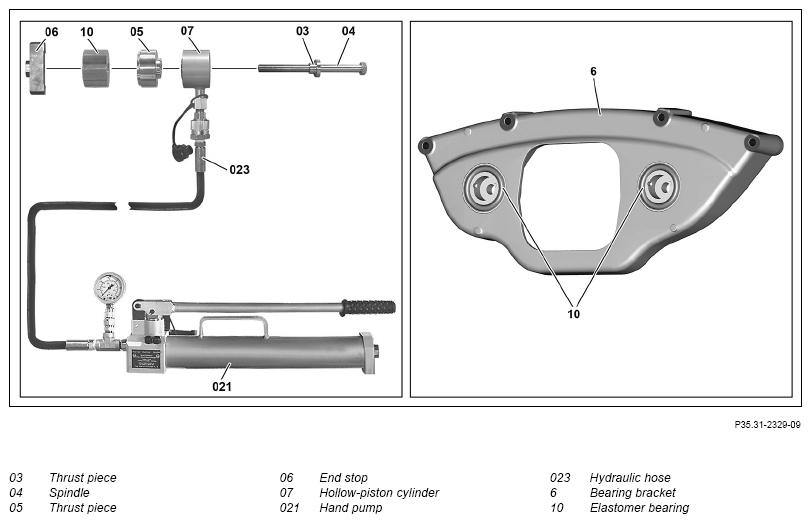

Position spindle (04), thrust piece (03), hydraulic cylinder (07), thrust piece (05), elastomer bearing (10) and end stop (06) at bearing bracket (6).
Press elastomer bearing (10) into bearing bracket (6).
If hydraulic cylinder (07) has reached its maximum stroke, drain pressure on hand pump (021), and screw spindle (04) further into end stop (06), then repeat press-in procedure. The shape of the end stop (06) determines the end position of the elastomer bearing (10) in the bearing bracket (6).
Remove special tools.
