Remove/Install Elastomer Bearing Of Thrust Arm On Wheel Carrier - AR35.20-P-3403LWI

Model 205.386/387/486/487

MODIFICATION NOTES

15.08.2016	Grease spindle of extraction and insertion tool with rolling-element bearing grease added.	Operation steps 4, 5
20.12.2016	Special tool added.	Operation step 2

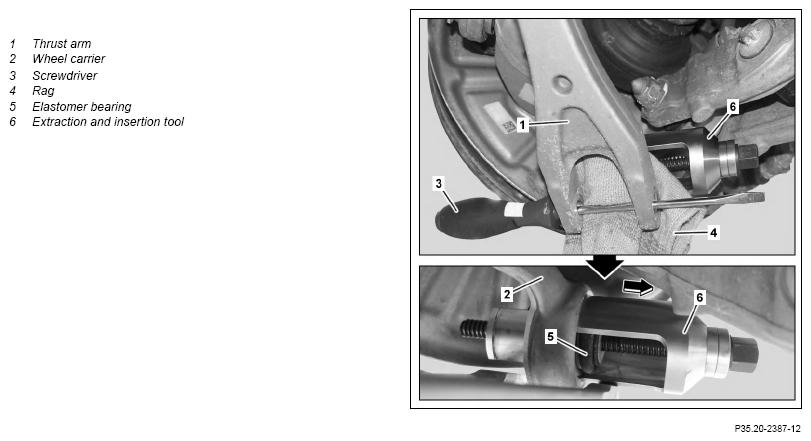

Fig 1: Elastomer Bearing Of Thrust Arm On Wheel Carrier Component Location - Model 205.386/387/486/487

Courtesy of MERCEDES-BENZ USA

Notice	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove rear wheel		AR40.10-P-1102A
2	Detach thrust arm (1) from wheel carrier (2)	The screwdriver bit is to be used when a bolt with a multi-socket tooth profile is fitted.
		Bolt, thrust arm to wheel carrier	*BA35.20-P-1002-05J
		Screwdriver bit	Fig 2
3	Use a suitable screwdriver (3) to secure thrust arm (1) against folding up	Clamp a rag (4) between the thrust arm (1) and the wheel carrier (2). Otherwise the wheel carrier (2) can be damaged.
4	Position extraction and insertion tool (6), as shown, onto wheel carrier (2) and elastomer bearing (5)
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Grease spindle of extraction and insertion tool (6) with rolling-element bearing grease. Otherwise, the extraction and insertion tool (6) may be damaged. Make sure that the extraction and insertion tool (6) is seated correctly.
		Extraction and insertion tool	Fig 3
5	Pull elastomer bearing (5) out of wheel carrier (2) in direction of arrow and remove
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Grease spindle of extraction and insertion tool (6) again with rolling-element bearing grease. Otherwise, the extraction and insertion tool (6) may be damaged. : Pull the new elastomer bearing (5) into the wheel carrier (2) until the extraction and insertion tool (6) reaches its end stop.
6	Install in the reverse order
7	Perform wheel alignment check		AR40.20-P-0200LW

THRUST ARM

Number	Designation			Model 205
BA35.20-P-1002-05J	Bolt, thrust arm to wheel carrier	Stage 1	Nm	50
		Stage 2	∠°	90

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Insertion Tool (205 589 01 43 00)

Courtesy of MERCEDES-BENZ USA
