Remove/Install Elastomer Bearing Of Strut Rod On Wheel Carrier - AR35.20-P-3402LWI

Model 205.386/387/486/487

MODIFICATION NOTES

15.08.2016	Grease spindle of extraction and insertion tool with rolling-element bearing grease added.	Operation steps 3, 4
20.12.2016	Special tool added.	Operation step 2

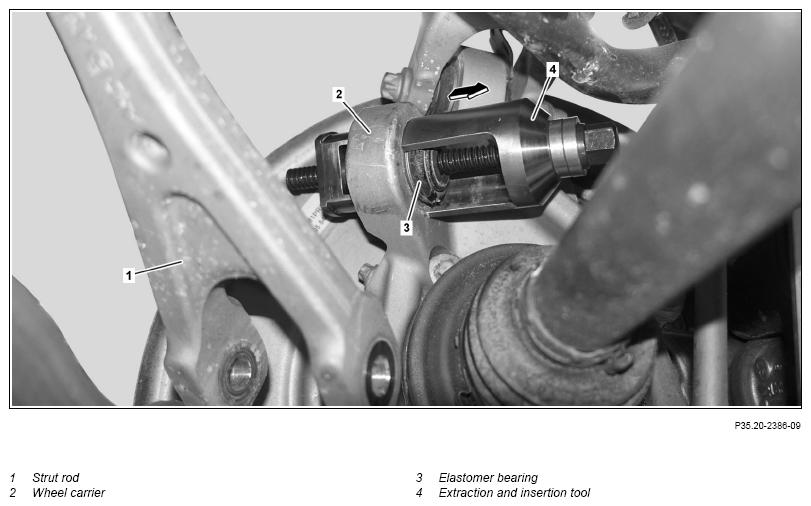

Fig 1: Elastomer Bearing Of Strut Rod On Wheel Carrier Component Location - Model 205.386/387/486/487

Courtesy of MERCEDES-BENZ USA

Notice	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
Notice	Notes on handling, transport and storage of ceramic brake disks		AH42.10-P-9406-13A
	Notes on handling, transport and storage of composite brake disks		AH42.10-P-9406-12LF
	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Remove rear axle rpm sensor and place to one side with line connected		AR42.40-P-0820LW
2	Remove strut rod (1) from wheel carrier (2) and fold downwards	The screwdriver bit is to be used when a bolt with multi-point socket profile is installed.
		Bolt, strut rod to wheel carrier	*BA35.20-P-1002-03L
		Screwdriver bit	Fig 2
3	Position extraction and insertion tool (4) at wheel carrier (2) and elastomer bearing (3) as shown
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Grease spindle of extraction and insertion tool (4) with rolling-element bearing grease. Otherwise the extraction and insertion too (4) could be damaged. Make sure that the extraction and insertion tool (4) is seated correctly.
		Extraction and insertion tool	Fig 3
4	Pull elastomer bearing (3) out of wheel carrier (2) in direction of arrow and remove
	High temperature antifriction bearing grease (NLGI grade 2)		BB00.40-P-0265-01A
		Again grease spindle of extraction and insertion tool (4) with rolling-element bearing grease. Otherwise the extraction and insertion too (4) could be damaged. : Pull the new elastomer bearing (3) into the wheel carrier (2) until the extraction and insertion tool (4) reaches its end stop.
5	Install in the reverse order
6	Perform wheel alignment check		AR40.20-P-0200LW

STRUT ROD

Number	Designation				Model 205
BA35.20-P-1002-03L	Bolt, strut rod to wheel carrier	M12	Stage 1	Nm	50
			Stage 2	∠°	90

Fig 2: Identifying Screwdriver Bit (119 589 00 10 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Extraction And Insertion Tool (205 589 01 43 00)

Courtesy of MERCEDES-BENZ USA
