Remove/Install Front Seat Belt Buckle - AR91.40-P-1515LW
Model 205
Model 213
Model 238
Model 253, 293
Shown on model 205.0
| Remove/install | |||
| 1 | Remove front seat and place on seat backrest | Model 205.0/1/2/3, 213, 238, 253, 293 | AR91.10-P-1000LW |
| Model 205.4 | AR91.10-P-1000LWR | ||

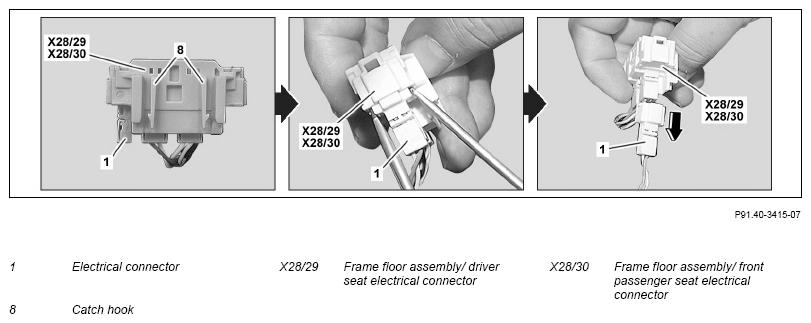

| 2 | Release catch hooks (8) and remove frame floor assembly electrical connector (X28/29, X28/30) from holder (7). | ||
| 3 | Release electrical connector (1) of electrical wiring harness (5) using two suitable screwdrivers and pull out frame floor assembly electrical connector (X28/29, X28/30). | Carefully remove electrical connection (1). Otherwise, this may be damaged. |
|
| 4 | Release electrical wiring harness (5) from trim (2) and expose. | Fix electrical wiring harness (5) to seat adjustment unit so that the front seat can be adjusted without any restriction. Otherwise shearing off or crushing of the electrical wiring harness (5) may occur. |
|

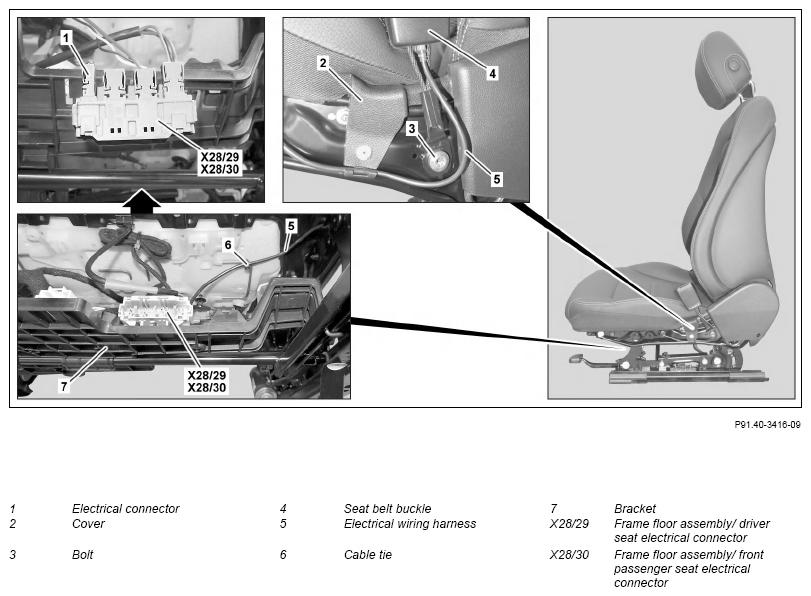

| Fig 1 | |||
| 5 | Remove bolt (3) and remove seat belt buckle (4). | ||
| *BA91.40-P-1004-01U | |||
| 6 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.0 | Model 205.1 | |
|---|---|---|---|---|
| BA91.40-P-1004-01U | Bolt, front seat belt buckle | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.2 | Model 205.3 | |
|---|---|---|---|---|
| BA91.40-P-1004-01U | Bolt, front seat belt buckle | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.4 | Model 213 | |
|---|---|---|---|---|
| BA91.40-P-1004-01U | Bolt, front seat belt buckle | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 238 | Model 253 | |
|---|---|---|---|---|
| BA91.40-P-1004-01U | Bolt, front seat belt buckle | Nm | 35 | 35 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 293 | |
|---|---|---|---|
| BA91.40-P-1004-01U | Bolt, front seat belt buckle | Nm | 35 |
