Remove/Install Condenser - AR83.30-P-6540LWA
Model 205 with engine 177
| Risk of fire due to ignition of R1234yf refrigerant on hot components. Risk of poisoning caused by inhaling overheated refrigerant vapors. Risk of injury to skin and eyes caused by contact with escaped R1234yf refrigerant and when working on pressurized parts. Risk of explosion due to formation of ignitable refrigerant/air mixtures | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0007-01A | |
| Risk of poisoning caused by inhaling overheated refrigerant vapors from an air conditioning system containing R134a. Risk of injury to skin and eyes caused by contact with liquid R134a refrigerant and when working on pressurized parts | Never perform welding work on or near a closed air conditioning system. No smoking or open flames. Wear safety glasses and protective gloves. Work only in well ventilated rooms. Carry out repair work on the air conditioning system circuit only after the system has been evacuated. | AS83.00-Z-0006-01A | |
| Notice | Protect air conditioning circuit and components from moisture when carrying out repair work | AH83.30-P-0005-01KOA | |
| Notes on handling refrigerant R1234yf | AH83.30-P-0003-02A | ||
| Notes on handling refrigerant R134a | AH83.30-P-0003-01KOA | ||
| Remove/install | |||
| 1 | Drain air conditioning system | AR83.30-P-1760LW | |
| 2 | Remove horns | AR54.35-P-1555LWA | |

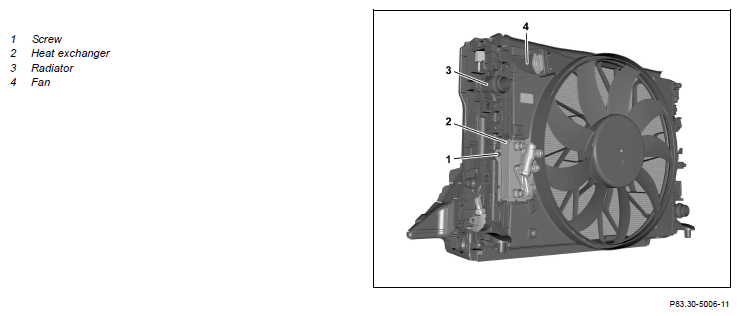

| 3 | Remove screw/bolt (1) from heat exchanger (2) | ||
| 4 | Unfasten heat exchanger (2) from fan (4) and hang to one side with lines connected | ||

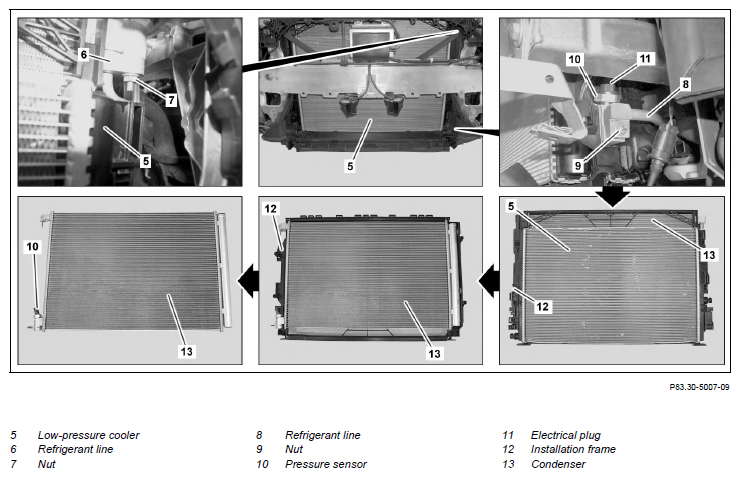

| 5 | Unscrew nut (7) from refrigerant line (6) | *BA83.30-P-1002-01Q | |
| 6 | Remove refrigerant line (6) from condenser (13) | ||
| 7 | Remove sealing ring of refrigerant line (6) | ||
| Compressor oils (specification 362.0) | BB00.40-P-0362-00A | ||
| 8 | Seal refrigerant line (6) | Fig 1 | |
| 9 | Unscrew nut (9) from refrigerant line (8) | *BA83.30-P-1002-01Q | |
| 10 | Remove refrigerant line (8) from condenser (13) | ||
| 11 | Remove sealing ring of refrigerant line (8) | ||
| Compressor oils (specification 362.0) | BB00.40-P-0362-00A | ||
| 12 | Seal refrigerant line (8) | Fig 1 | |
| 13 | Unlock and detach electrical connector (11) on pressure sensor (10) | ||
| 14 | Drain coolant from low-temperature circuit | AR09.41-P-6834MNA | |
| 15 | Remove condenser (13) with radiator (3) and low-temperature cooler (5) as a unit | AR20.20-P-3865MNA | |
| 16 | Unclip low-temperature cooler (5) | ||
| 17 | Unclip installation frame (12) with condenser (13) | ||
| 18 | Unclip condenser (13) from installation frame (12) | ||
| 19 | Seal condenser (13) | Fig 1 | |
| 20 | Modify pressure sensor (10) | When replacing condenser (13). |
*BA83.30-P-1006-01Q |
| 21 | Install new receiver drier | If required. | AR83.30-P-6521LW |
| 22 | Install in the reverse order |
AIR CONDITIONING
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA83.30-P-1002-01Q | Nut, line to condenser | Nm | 12 |
AIR CONDITIONING
| Number | Designation | Model 205 | |
|---|---|---|---|
| BA83.30-P-1006-01Q | Refrigerant pressure sensor to condenser | Nm | 10 |
