Remove/Install Fanfare Horns - AR54.35-P-1555LWA

MODEL 205 with ENGINE 177

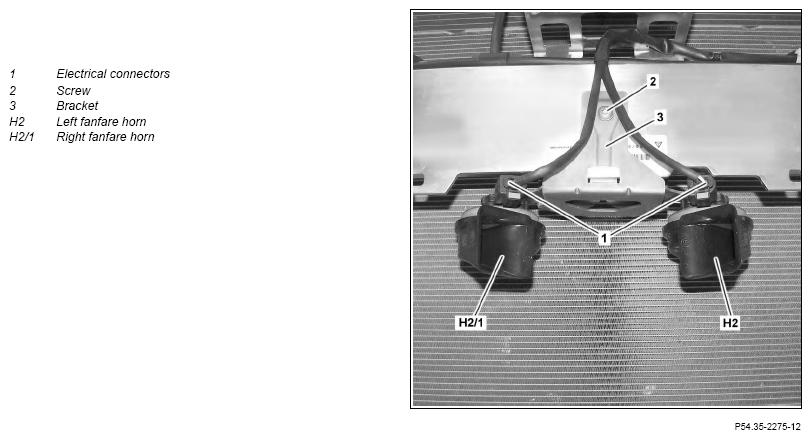

Fig 1: Fanfare Horns Component Location - Model 205 With Engine 177

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove front bumper		AR88.20-P-2000LW
2	Separate electrical connections (1)
3	Unscrew screw/bolt (2) and remove left horn (H2) and right horn (H2/1) with bracket (3)
4	Detach left horn (H2) and right horn (H21) from bracket (3)	When replacing the left horn (H2) or the right horn (H2/1).
5	Install in the reverse order
