Remove/Install Left Front Engine Support - AR22.10-P-4325MNA

Engine 177 in model 205

Courtesy of MERCEDES-BENZ USA

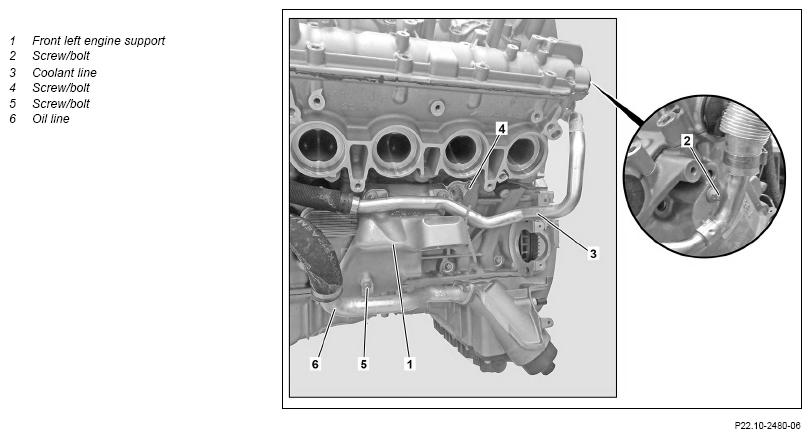

Fig 1: Front Left Engine Support Parts Location - Engine 177 In Model 205

Courtesy of MERCEDES-BENZ USA

Topical note	Notes on bolted connections with self tapping screws		AH00.00-P-0007-01SF
	Remove/install
1	Remove engine with transmission		AR01.10-P-2401MNA
2	Remove left charge air distributor		AR09.41-P-8683MNA
3	Detach screw/bolt (2) from bracket of coolant line (3)
4	Remove screw/bolt (4) and remove coolant line (3) on crankcase	Replace seal.
		Bolt, coolant feed pipe to crankcase/cylinder head/engine carrier/belt tensioner	*BA20.20-P-1002-01Q
5	Detach screw/bolt (5) for bracket of oil line (6) on left front engine support (1)

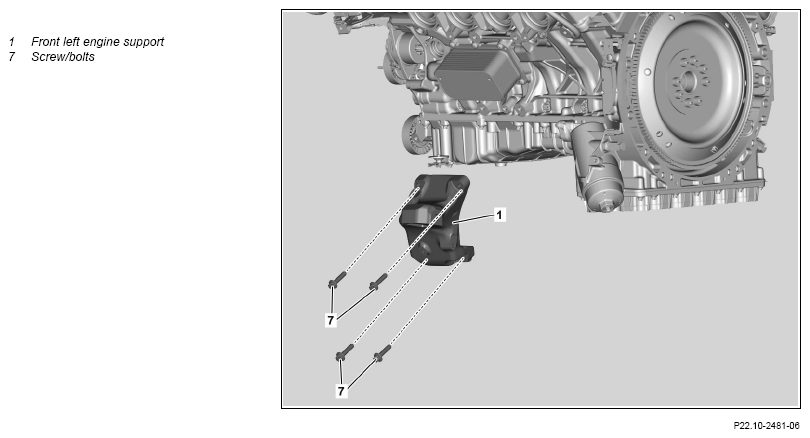

6	Remove screw/bolts (7) and remove left front engine support (1)	Replace screw/bolts (7).
		Bolt, engine support to crankcase	*BA22.10-P-1001-02C
7	Install in the reverse order

RADIATOR, COOLANT HOSES

Number	Designation		Engine 177 except in model 463
BA20.20-P-1002-01Q	Bolt, coolant feed pipe to crankcase/cylinder head/engine carrier/belt tensioner	Nm	9

ENGINE SUPPORT (ENGINE SIDE)

Number	Designation			Engine 177
BA22.10-P-1001-02C	Bolt, engine support to crankcase	Stage 1	Nm	20
		Stage 2	∠°	90
