Remove/Install Front Cover On Left Cylinder Head - AR01.30-P-5711MNA

Engine 176 in model 463

up to model year 2019

Engine 177 in model 205

Engine 178 in model 190 (except 190.381)

Shown on engine 177

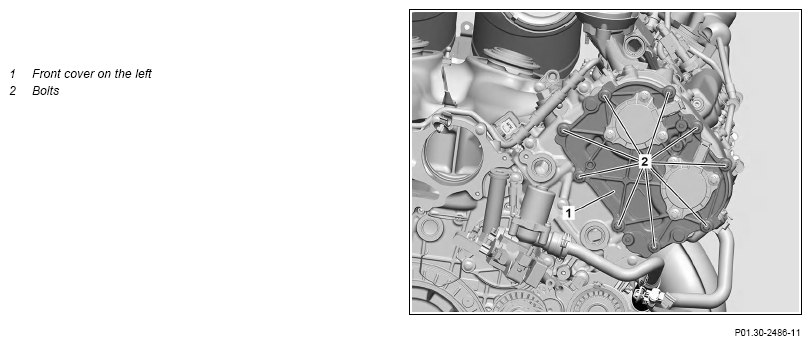

Fig 1: Front Cover On Left Cylinder Head Component Location - Model 205 With Engine 177

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of engine oil. Risk of poisoning  caused by swallowing engine oil	Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers.	AS18.00-Z-0001-01A
Notice	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
Notice	Notes on threaded connections with aluminum screws/bolts		AH00.00-P-0006-01RM
	Remove
1	Remove left oil separator.	Engine 178 in model 190 (except 190.381)	AR01.20-P-9750MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205	AR01.20-P-9750MNA
2	Release and disconnect electrical connector o left exhaust camshaft solenoid and left intake camshaft solenoid.	f Engine 176 in model 463 up to model year 2019
3	Remove screws (2).
4	Carefully release left front cover (1) at prying lugs and remove to the front.	To loosen do drive in any tooling between the left front cover (1) and left cylinder head cover or left cylinder head. The sealing surface will be damaged otherwise.
5	Remove left exhaust camshaft solenoid and left intake camshaft solenoid.	Only when replacing left front cover (1).	AR05.20-P-7295MNA
	Clean
6	Clean sealing surfaces at left cylinder head, left cylinder head cover and left front cover (1).	Do not use any sharp-edged tools or abrasive paper. The sealing surfaces can be damaged otherwise.	AR01.00-P-0050-01A
		Loctite 7200	*BR00.45-Z-1038-04A
		Loctite 7063 (400 ml) cleaning spray	*BR00.45-Z-1046-04A
	Install
7	Install left exhaust camshaft solenoid and left intake camshaft solenoid.	Only when replacing left front cover (1).	AR05.20-P-7295MNA
8	Apply sealant to left front cover (1). Notes on sealant path for front cover to cylinder head xxx		AH01.30-P-1000-02MM
		Sealant, Loctite 5970, 50 ml	*BR00.45-Z-1013-01A
		Application gun	Fig 2
9	Attach left front cover (1) to left cylinder head and left cylinder head cover and tighten bolts (2).	Replace screw/bolts (2). Bolt, chain case cover to cylinder head	*BA01.30-P-1002-01N
10	Attach electrical connector of left exhaust camshaft solenoid and left intake camshaft solenoid and lock.	Engine 176 in model 463 up to model year 2019	AR05.20-P-7295MNA
11	Install left oil separator.	Engine 178 in model 190 (except 190.381)	AR01.20-P-9750MNB
		Engine 176 in model 463 up to model year 2019 Engine 177 in model 205	AR01.20-P-9750MNA
	Check
12.1	Check engine oil level with on-board computer and correct if necessary.	Engine 176 in model 463 up to model year 2019
			AP18.00-P-1812GKI
12.2	Check engine oil level with vehicle's own oil dipstick and correct if necessary.	Engine 177 in model 205 Engine 178 in model 190 (except 190.381)
			AP18.00-P-1811MP
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
13	Perform engine test run and check engine in terms of leak tightness while engine is running

Fig 2: Identifying Application Gun (112 589 00 25 00)

Courtesy of MERCEDES-BENZ USA
