Notes On Sealant Path For Front Cover To Cylinder Head XXX - AH01.30-P-1000-02MM
Engine 152.9, 157, 176, 177, 178, 276, 278

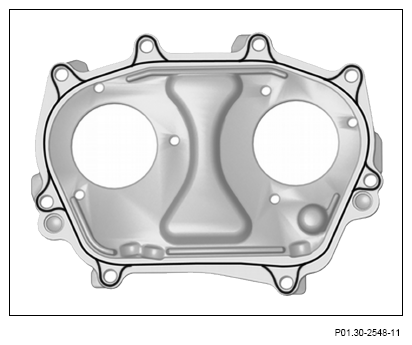

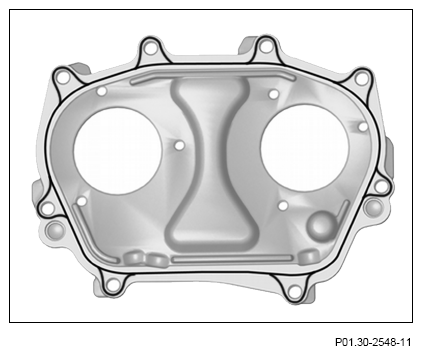

Shown on engine 157, 276, 278

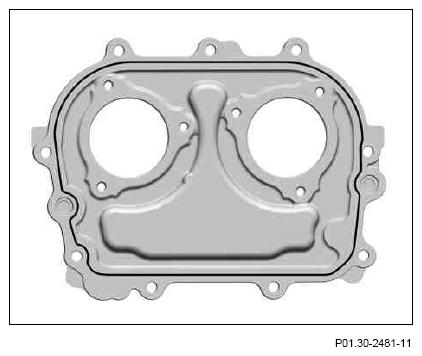

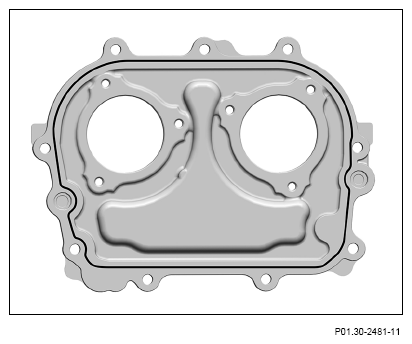

Shown on engine 152.9

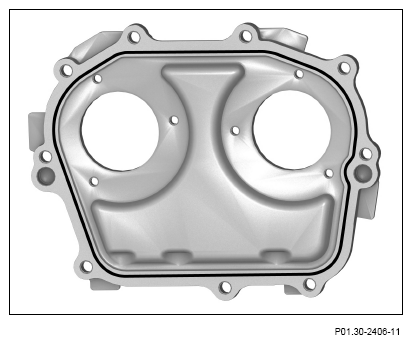

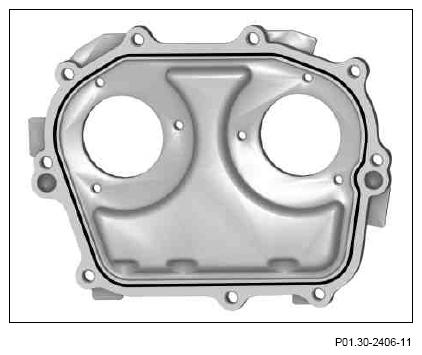

Shown on engine 176, 177, 178
Only apply sealant to specified area in the form of a bead with a height and width of 1.0 mm (± 0.3 mm).
The sealing surface must be cleaned.
Process the sealant within a period of 10 minutes. Do not spread the sealant bead.
Use only the sealant listed in the repair products.
Install front cover within a period of 10 minutes after applying the sealant.
