Remove/Install Coolant Line To Low-Temperature Circuit Expansion Reservoir - AR20.20-P-7442MNA
Engine 176 in model 463
up to model year 2019
Engine 177 in model 205
Shown on ENGINE 177

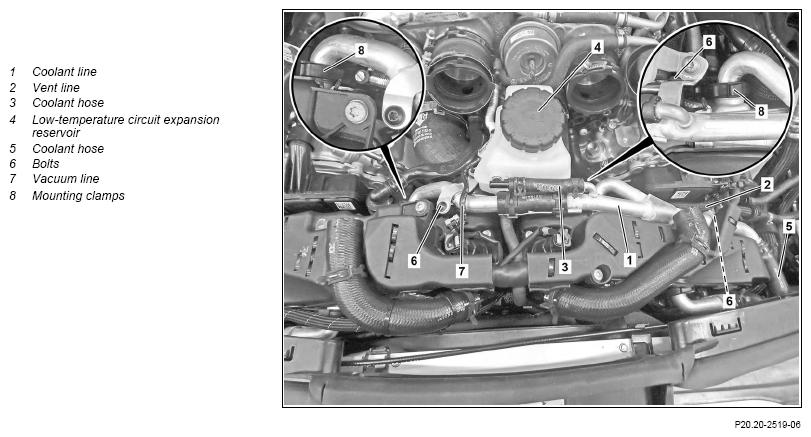

Fig 1: Coolant Line To Low-Temperature Circuit Expansion Reservoir Component Location - Model 205 W/ Engine 177
Shown on engine 176
| Remove/install | |||
| 1 | Remove lower engine compartment lining | Engine 176 in model 463 as of model year 2016 up to model year 2019 except code ZQ0 (G 500 4x42 ) | AR61.20-P-1105GW |
| Engine 177 in model 205 | AR61.20-P-1105LW | ||
| 2 | Drain coolant from low-temperature circuit | Engine 176 in model 463 up to model year 2019 | AR09.41-P-6834MNF |
| Engine 177 in model 205 | AR09.41-P-6834MNA | ||
| 3 | Remove left-hand air filter housing | AR09.10-P-1150MNA | |
| 4 | Remove right air filter housing | AR09.10-P-1150MNA | |
| 5 | Remove left intake air duct upstream of the left air filter housing | Engine 176 in model 463 up to model year 2019 | |
| 6 | Unclip vent line (2) at coolant line (1) to low-temperature circuit expansion reservoir (4) | Engine 177 in model 205 | |
| 7 | Detach coolant hose (3) from low-temperature circuit expansion reservoir (4) | ||
| 8 | Detach low-temperature circuit expansion reservoir (4) and place to one side with connected lines | Engine 177 in model 205 | AR09.41-P-0050MNG |
| Engine 176 in model 463 up to model year 2019 | AR09.41-P-0001MNA | ||
| 9.1 | Detach coolant hose (5) from coolant line (1) to low-temperature circuit expansion reservoir (4) | Engine 177 in model 205 | |

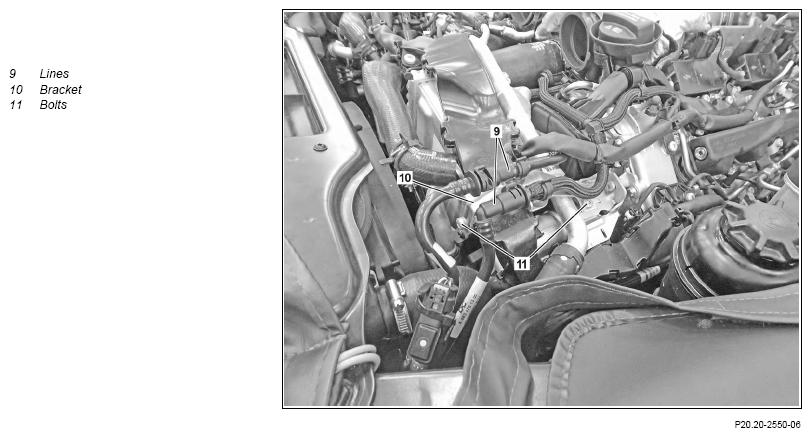

| Fig 2 | |||
| 9.2 | Detach coolant hose (5) from the lower coolant line | Engine 176 in model 463 up to model year 2019 | |
| Fig 2 | |||
| 10 | Unclip lines (9) from bracket (10) | Engine 176 in model 463 up to model year 2019 | |
| 11 | Unscrew screws/bolts (11) and remove bracket (10) | Engine 176 in model 463 up to model year 2019 | |
| 12 | Remove bolts (6) | ||
| 13 | Unclip vacuum line (7) | ||
| 14 | Detach vacuum line (7) on left and right exhaust gas turbocharger and place to one side | ||
| 15 | Open mounting clamps (8) and pull coolant line (1) to the low-temperature circuit expansion reservoir (4) from the left and right charge air cooler | ||
| 16 | Pull out coolant line (1) to low-temperature circuit expansion reservoir (4) upwards | ||
| 17 | Install in the reverse order | ||
| Check | |||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 18 | Perform an engine test run and check low-temperature circuit cooling system for leaktightness |
