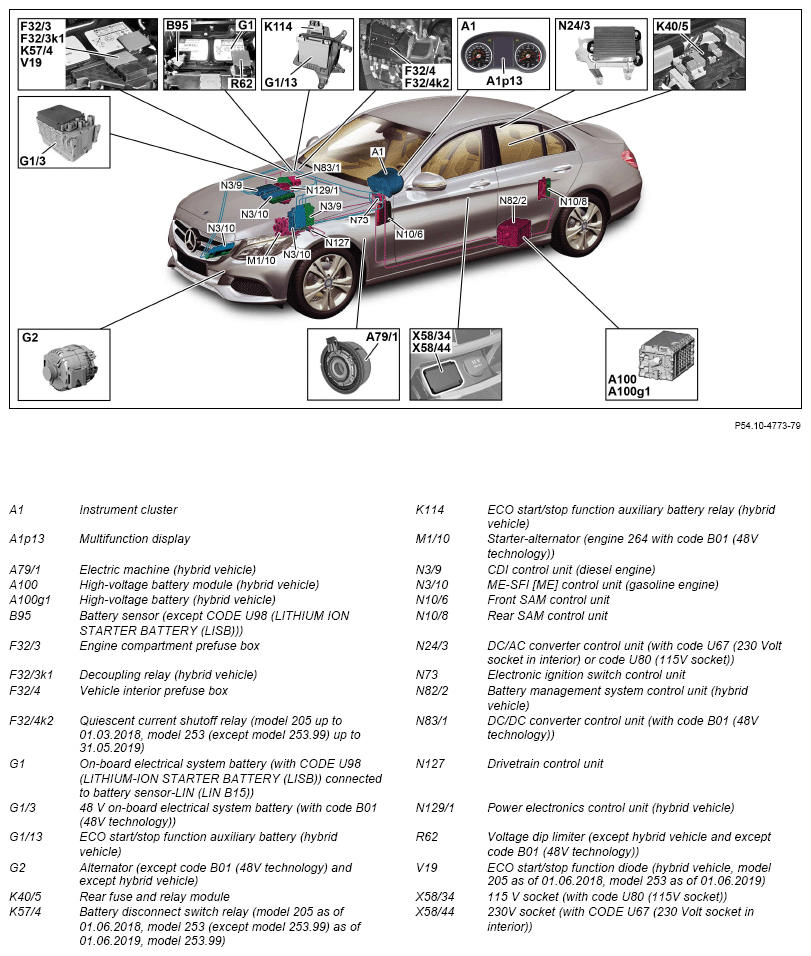

Overview Of Energy Management System Components - GF54.10-P-9990RF
Model 205, 253
Shown on model 205.0 up to 01.03.2018
The on-board electrical system battery and the battery sensor that goes with it are installed in the trunk recess beneath the cover in vehicles with code B01 (48V technology) and in the engine compartment in vehicles except code B01 (48V technology).
Model 205, 253 with engine 264
with code B01 (48V technology)
The low-temperature circuit 2 temperature sensor (B10/14) and low-temperature circuit circulation pump 2 (M43/7) are also installed.

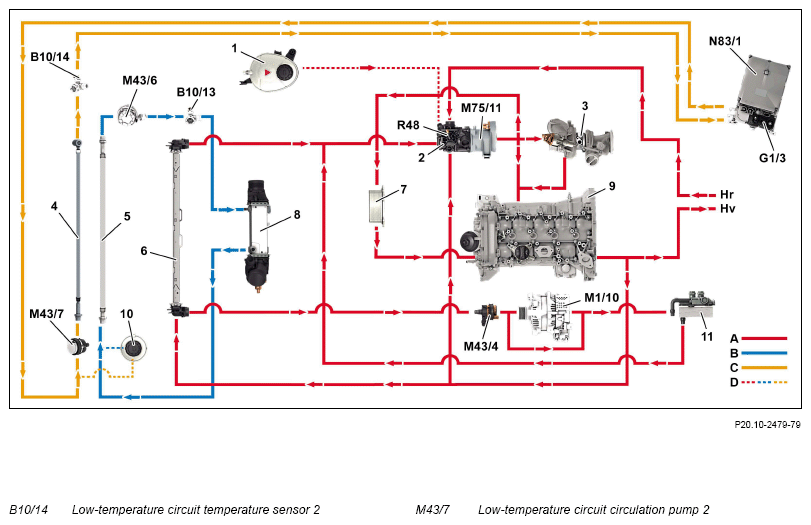

Schematic diagram of cooling circuits (engine 264 with code B01 (48V technology))
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Component description for CDI control unit | Model 205 with engine 626 N3/9 |
GF07.16-P-6000ORB | |
| Model 205.012/212 with engine 651.9 N3/9 |
GF07.16-P-6000OLC | ||
| Model 205 (except 205.012/212) with engine 651.9 with code 494 (US version) Model 253 with engine 651.9 N3/9 |
GF07.16-P-6000OLD | ||
| Model 205 (except 205.012/212) with engine 651 except code 494 (US version) N3/9 |
GF07.16-P-6000OLE | ||
| Model 205 (except 205.013/213), 253 (except 253.311/911) with engine 654.9 Model 253 with engine 656.9 N3/9 |
GF07.16-P-6000ORF | ||
| Model 205.013/213, 253.311/911 with engine 654.9 N3/9 |
GF07.16-P-6000ORH | ||
| Model 253 with engine 642.8 N3/9 |
GF07.16-P-6000OGY | ||
| Component description for ME-SFI (ME) control unit | Model 205, 253 with engine 177.9 N3/10 |
GF07.61-P-6000MNA | |
| Model 205, 253 with engine 264.9 N3/10 |
GF07.61-P-6000MRS | ||
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 N3/10 |
GF07.61-P-6000MRA | ||
| Model 205.047/053/054/147/247/253, 253.353/354/953/954 with engine 274.9 N3/10 |
GF07.61-P-6000MRH | ||
| Model 205, 253 with engine 276.8 N3/10 |
GF07.61-P-6000MMV | ||
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| DC/AC converter control unit, component description | Model 205, 253 with code U67 (230 V socket in rear passenger compartment) Model 205, 253 with code U80 (115 V socket) N24/3 |
GF54.21-P-4127RF | |
| Component description for the electronic ignition lock control unit | Model 205 as of model year 2019 Model 253 (except 253.99) as of model year 2020 Model 253.99 N73 |
GF80.57-P-6001RFM | |
| Model 205 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N73 |
GF80.57-P-6001RF | ||
| Component description for battery management system control unit | Model 205.012/212 with engine 651.921 Model 205.013/213 with engine 654.920 Model 205.047/147/247, 253.354/954 with engine 274.920 Model 205.053/253 with engine 274.920 N82/2 |
GF54.10-P-3012RFH | |
| Drivetrain control unit, component description | Model 205, 253 with engine 177.9 N127 |
GF54.21-P-2141MNA | |
| Model 205, 253 with engine 264.9 N127 |
GF54.21-P-2141MRS | ||
| Model 205 (except 205.047/053/054/147/247/253), 253 (except 253.353/354/953/954) with engine 274.9 N127 |
GF54.21-P-2141MRA | ||
| Model 205.047/053/054/147/247/253, 253.353/354/953/954 with engine 274.9 N127 |
GF54.21-P-2141MRH | ||
| Model 205, 253 with engine 276.8 N127 |
GF54.21-P-2141RF | ||
| Model 253.99 with engine 780 N127 |
GF54.21-P-2141RFW | ||
| Model 205 with engine 626 N127 |
GF54.21-P-2141ORB | ||
| Model 205 (except 205.012/212), 253 with engine 651.9 N127 |
GF54.21-P-2141OLD | ||
| Model 205.012/212 with engine 651.9 N127 |
GF54.21-P-2141OLC | ||
| Model 205, 253 with engine 654.9 Model 253 with engine 656.9 N127 |
GF54.21-P-2141ORH | ||
| Component description for power electronics control unit | Model 205.012/212 with engine 651.921 Model 205.013/213 with engine 654.920 Model 205.047/147/247, 253.954 with engine 274.920 Model 205.053/253 with engine 274.920 Model 253.354 with engine 274.920 N129/1 |
GF08.20-P-1001RFH | |
| Table of contents for function description of energy management | GF54.10-P-0990RF |
