DC/AC Converter Control Unit, Component Description - GF54.21-P-4127RF
Model 205, 253
with code U67 (230 V socket in interior compartment)
Model 205, 253
with code U80 (115 V socket)
Shown on model 205.0
Location

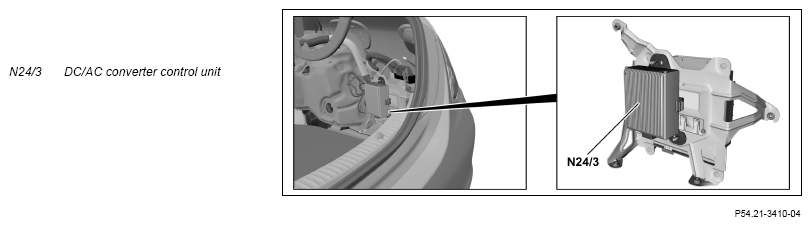

The DC/AC converter control unit is located in the luggage compartment at the right, on a bracket behind the cover.
Task
The 115 V power socket (X58/34) (with code U80 (115V socket)) provides a 115 V AC voltage.
The 230V socket (X58/44) (with code U67 (230 volt socket in interior)) provides a 230 V AC voltage.
The DC/AC converter control unit converts the DC voltage of the on-board electrical system into AC voltage. Small electrical devices that require an alternating voltage (e.g. video game consoles, mobile phone chargers) can be connected to the socket supplied in this manner. The maximum allowable electrical continuous load is P = 150 W; short-term, for t = 2 s, up to P = 300 W is permissible.
The DC/AC converter control unit supplies the microswitch in the socket with voltage. If a consumer is connected to the socket, voltage is switched through to the control input of the DC/AC converter control unit. The DC/AC converter control unit then converts the DC voltage of the on-board electrical system into AC voltage.
| Wiring diagram for control unit DC/AC converter | Model 205 as of model year 2019 with code U67 (230 V socket in interior compartment) | PE54.10-P-2103-97FBC | |
| Model 253 (except 253.99) as of model year 2020 with code U67 (230 V socket in interior compartment) Model 253 (except 253.99) as of model year 2020 with code U80 (115 V socket) Model 253.99 with code U67 (230 V socket in interior compartment) | PE54.10-P-2103-97FCA | ||
| Model 205 up to model year 2019 with code U67 (230 V socket in interior compartment) Model 253 (except 253.99) up to model year 2020 with code U67 (230 V socket in interior compartment) | PE54.10-P-2103-97FBA | ||
| Model 253 up to model year 2020 with code U80 (115 V socket) | PE54.10-P-2103-97FBB |
