Remove/Install Head Unit - AR82.85-P-1101LWM
Model 205
as of model year 2019
with code 531 (COMAND APS)
Model 205
with code 506 (Audio 20 NTG 5.5 radio)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Topical note | Notes on avoiding damage to optical fibers during repair work | AH82.60-P-0001-05AK | |
| Remove/install | |||
| 1 | Perform commissioning of head unit (A26/17). | When replacing head unit (A26/17). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m). | ||
| 3.1 | Remove cover from center console. | Model 205 with transmission 722, 724, 725 as of model year 2019 with code 531 (COMAND APS) Model 205 with transmission 722, 724, 725 with code 506 (Audio 20 NTG 5.5 radio) |
|
| AR68.20-P-2350LW | |||
| 3.2 | Remove cover for upper control panel control unit. | Model 205 with transmission 716 as of model year 2019 with code 531 (COMAND APS) Model 205 with transmission 716 with code 506 (Audio 20 NTG 5.5 radio) |
|
| AR68.20-P-2313LW | |||

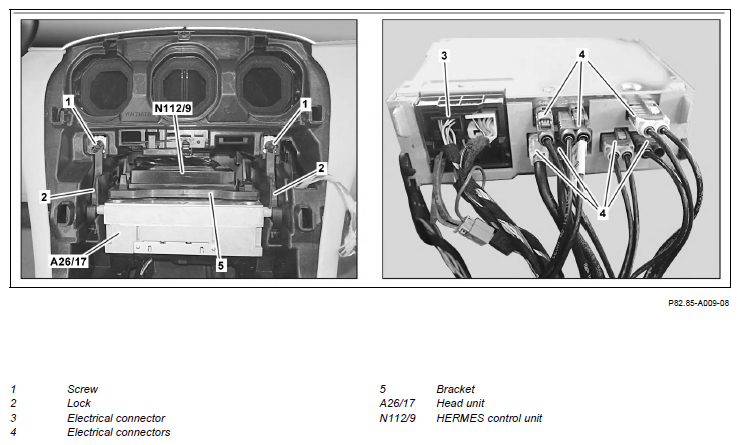

| 4 | Loosen screws (1) on locks (2). | ||
| 5 | Guide head unit (A26/17) out of locks (2). | ||
| 6 | Remove HERMES control unit (N112/9) and place to one side with connected lines. | Model 205 as of model year 2019 with code 360 (HERMES UMTS) with code 506 (Audio 20 NTG 5.5 radio) Model 205 as of model year 2019 with code 360 (HERMES UMTS) with code 531 (COMAND APS) Model 205 as of model year 2019 with code 362 (HERMES LTE) with code 506 (Audio 20 NTG 5.5 radio) Model 205 as of model year 2019 with code 362 (HERMES LTE) with code 531 (COMAND APS) |
AR82.95-P-0019LWM |
| 7 | Disconnect electrical connectors (3, 4). | ||
| 8 | Cover fiber-optic cable in electrical connector (3) and head unit (A26/17). | If installed. | |
| 9 | Remove head unit (A26/17). | ||
| 10 | Remove holder (5) from head unit (A26/17). | When replacing the head unit (A26/17) | |
| 11 | Install in the reverse order. |
