Remove/Install Driver-Side Footwell Woofer - AR82.62-P-7822LWE
Model 205
with code 810 (Premium sound system)
Model 213, 238
with code 810 (Premium sound system)
Model 213, 238
with code 811 (High-End sound system)
Model 253, 293
with code 810 (Premium sound system)

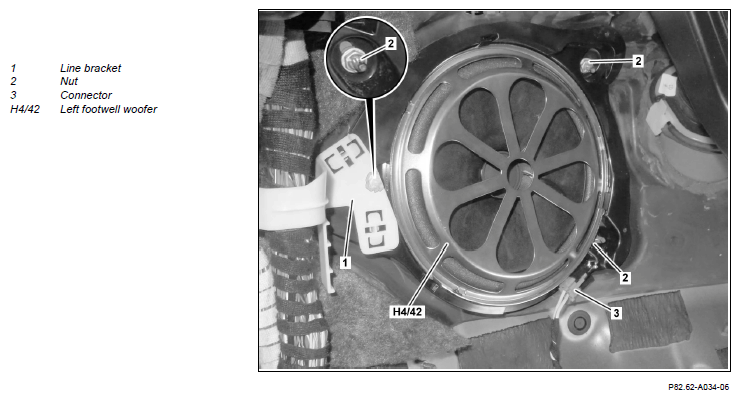

Shown on model 205
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove cover under driver's side instrument panel. | Model 293 with code 810 (Premium sound system) |
AR68.10-P-1501EQ |
| Model 205, 253 with code 810 (Premium sound system) |
AR68.10-P-1500LW | ||
| Model 213, 238 with code 810 (Premium sound system) Model 213, 238 with code 811 (High-End sound system) |
AR68.10-P-1501LWE | ||
| 2 | Remove front floor covering on driver's side. | Model 293 with code 810 (Premium sound system) |
AR68.80-P-0007EQ |
| Model 205, 253 with code 810 (Premium sound system) |
AR68.20-P-2050LW | ||
| Model 213, 238 with code 810 (Premium sound system) Model 213, 238 with code 811 (High-End sound system) |
AR68.20-P-2060LWE | ||
| 3 | Unclip line bracket (1). | Model 205, 253, 293 with code 810 (Premium sound system) |
|
| 4 | Disconnect plug (3). | ||
| 5 | Remove nuts (2). | ||
| 6 | Remove left footwell bass speaker (H4/42). | ||
| 7 | Install in the reverse order. |
