Remove/Install Antenna Amplifier/Compensator For Telephone - AR82.62-P-0005LW
Model 205, 253
as of model year 2017
with code 386 (Comfort telephony)
except code 379 (Telephone module with Bluetooth® (SAP profile))
Model 205, 253
up to model year 2017
with code 386 (Comfort telephony)
Model 205, 293
with code 899 (Multifunction telephony)
Shown on model 253.### 1# up to model year 2017 with code 386 (Comfort telephony)

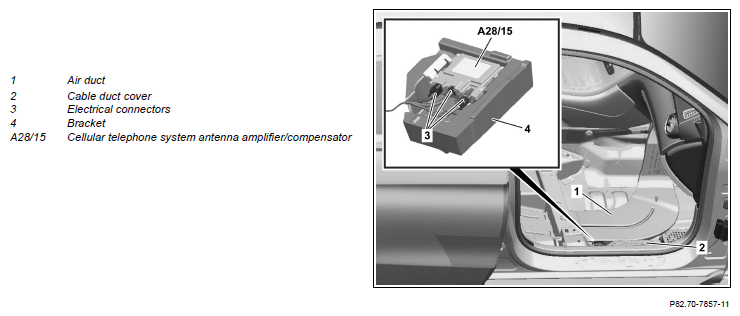

Fig 1: Telephone Antenna Amplifier/Compensator Component Location - Model 205 With Code(s) 386, 899, And With Code 386 Except Code 379 (Shown On Model 253.### 1# Up To Model Year 2017 With Code 386)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Remove/install | |||
| 1 | Remove right front seat. | Model 205.4 as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.4 up to model year 2017 with code 386 (Comfort telephony) Model 205.4 with code 899 (Multifunction telephony) |
AR91.10-P-1000LWR |
| Model 205.0/1/2/3, 253 as of model year 2017 with code 386 (Comfort telephony) except code 379 (Telephone module with Bluetooth® (SAP profile)) Model 205.0/1/2/3, 253 up to model year 2017 with code 386 (Comfort telephony) Model 205.0/1/2/3, 293 with code 899 (Multifunction telephony) |
AR91.10-P-1000LW | ||
| 2 | Detach front right floor covering. | ||
| 3 | Remove air duct (1). | ||
| 4 | Remove cover from cable duct (2). | ||
| 5 | Remove cellular telephone system antenna amplifier/compensator (A28/15) from holder (4) and disconnect electrical connectors (3). | ||
| 6 | Install in the reverse order. |
