(Overview Of Interior Illumination (IBL) System Components - GF82.20-P-9997RF)
Model 205 up to model year 2019
Model 253 (except 253.99) up to model year 2020

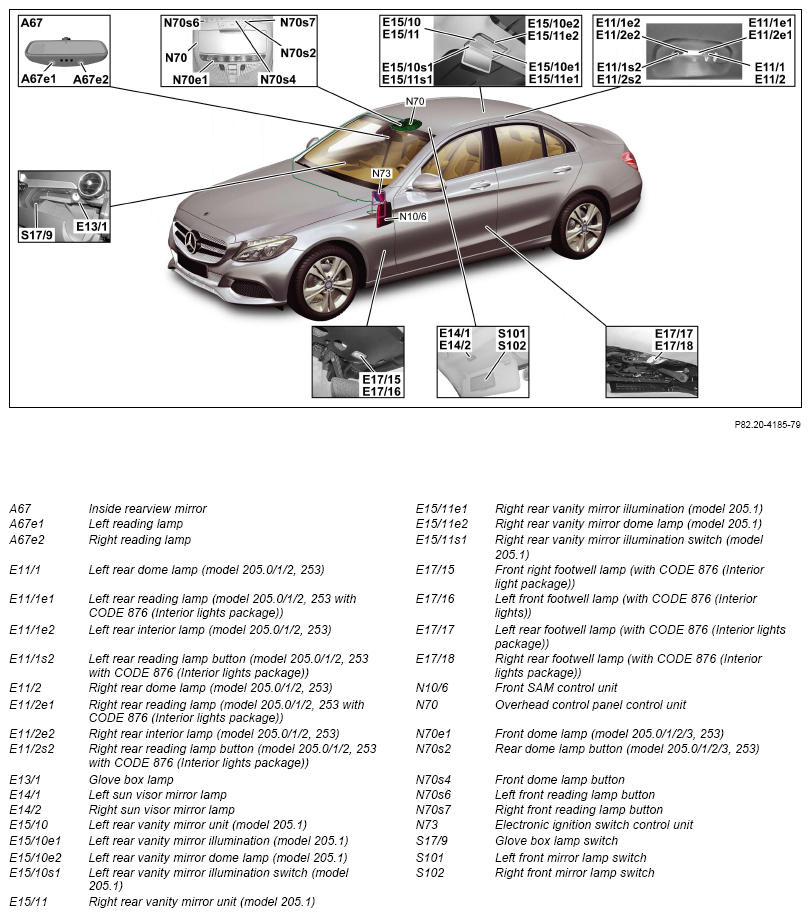

Manual interior lights control, shown on model 205.0
Model 205.3
up to model year 2019
with code 876 (Interior Light package)

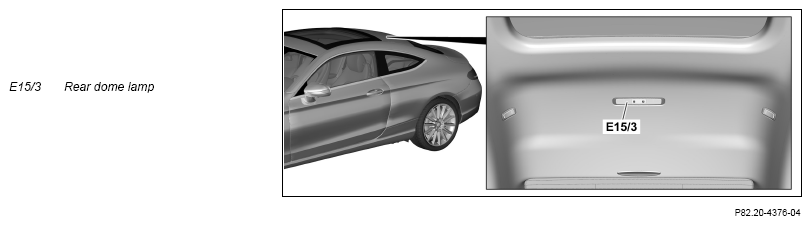

The rear dome lamp (E15/3) is also installed.
Shown on model 205.3 with code 876 (Interior lights package)
Model 205.4 up to model year 2019

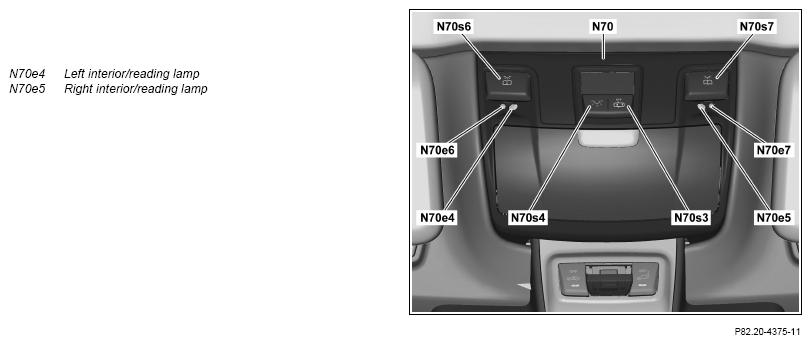

The left interior/reading lamp (N70e4) and the right interior/reading lamp (N70e5) are also installed.
Shown on overhead control panel control unit on model 205.4

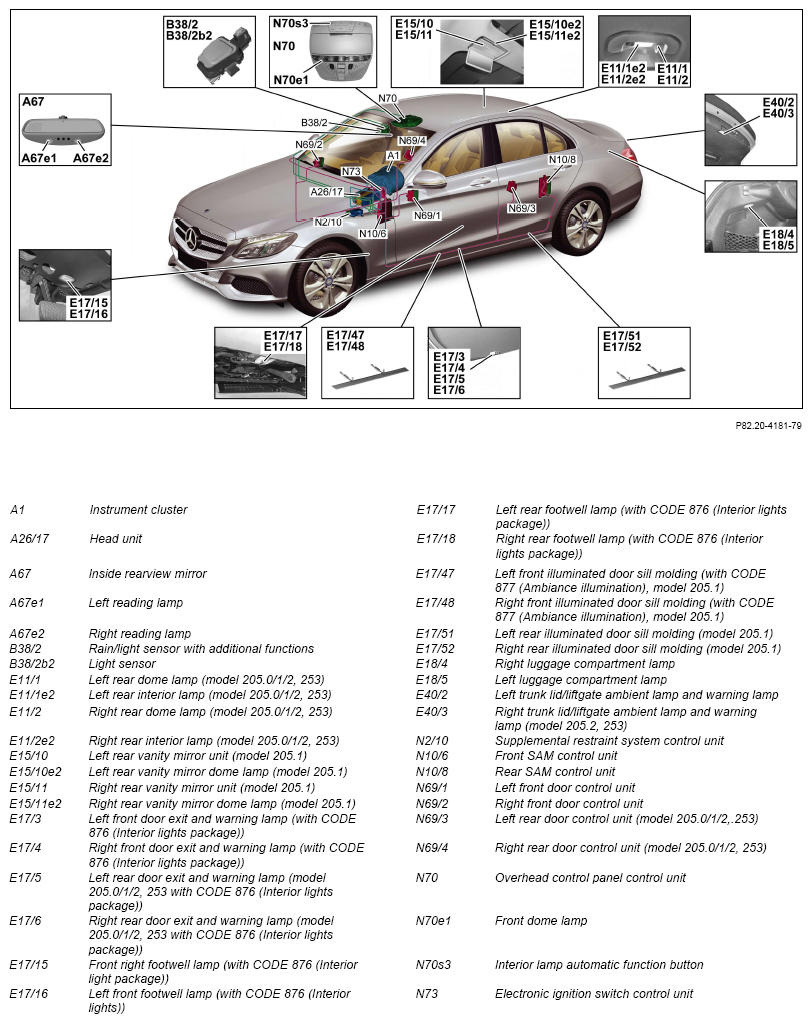

Automatic interior lights control, shown on model 205.0
Model 205.3
up to model year 2019
with code 876 (Interior Light package)
The rear dome lamp (E15/3) is also installed.
Model 205.4 up to model year 2019
The left interior/reading lamp (N70e4) and the right interior/reading lamp (N70e5) are also installed.
Search and symbol illumination, shown on model 205.0
Model 205.3 up to model year 2019
with code 876 (Interior Light package)
The rear dome lamp (E15/3) with rear dome lamp ambiance illumination (E15/3e5) is also installed.
Model 205.4 up to model year 2019
with code 351 (eCall emergency call system)

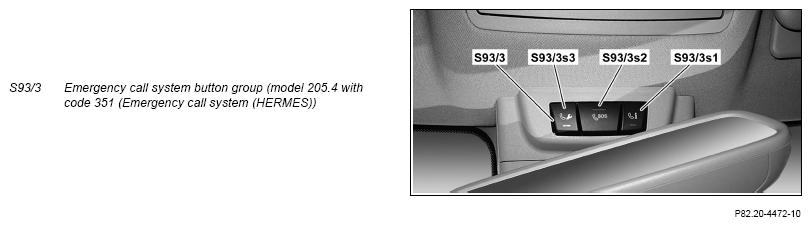

The emergency call system button group (S93/3) is also installed
Shown on emergency call system button group (S93/3) on model 205.4 with code 351 (Emergency call system (HERMES))

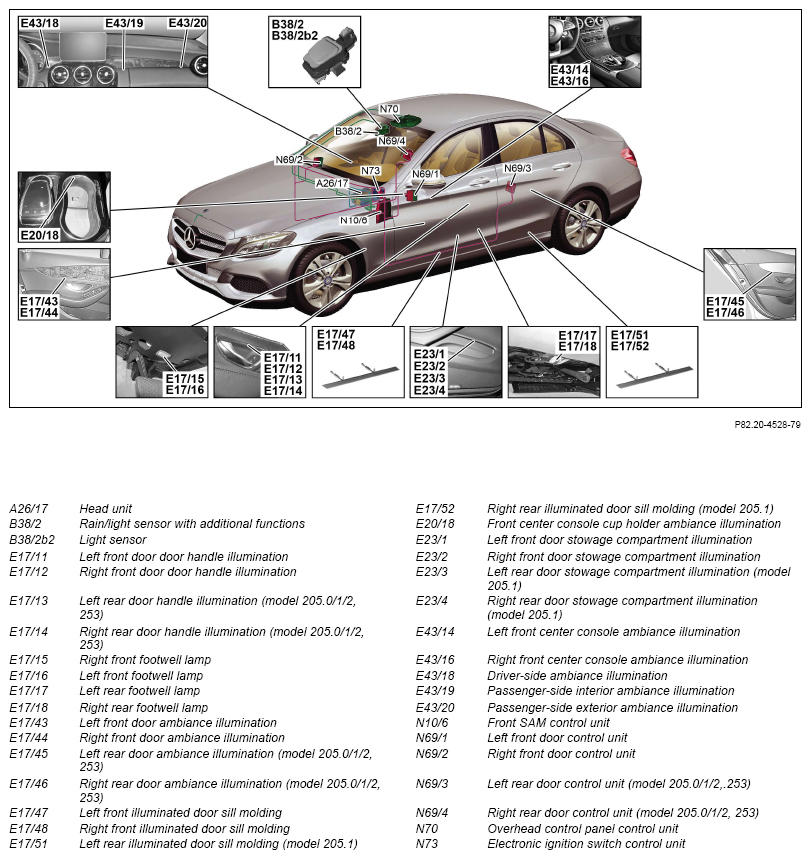

Ambiance illumination (with CODE 877 (Ambiance illumination)), shown on model 205.0
Model 205.3 up to model year 2019
with code 877 (Ambient lighting)
The rear dome lamp (E15/3) with rear dome lamp ambiance illumination (E15/3e5) is also installed.
| Component description for instrument cluster | A1 | GF54.30-P-6000RF | |
| Head unit, component description | Model 205 up to model year 2019 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 520 (Audio 20 USB) except code 522 (Audio 20 radio) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RF | |
| Model 205 up to model year 2019 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) Model 253 (except 253.99) up to model year 2020 with code 522 (Audio 20 radio) except code 520 (Audio 20 USB) except code 531 (COMAND APS) A26/17 |
GF82.85-P-3140RFA | ||
| Model 205 up to model year 2019 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) Model 253 (except 253.99) up to model year 2020 with code 531 (COMAND APS) except code 520 (Audio 20 USB) except code 522 (Audio 20 radio) A26/17 |
GF82.85-P-3140RFB | ||
| Component description for Audio/COMAND display | A40/8 | GF54.30-P-6150RF | |
| Component description for Audio/COMAND control panel | A40/9 | GF54.21-P-4501RF | |
| Rain/light sensor with additional functions, component description | B38/2 | GF54.21-P-6005RF | |
| Supplemental restraint system control unit, component description | N2/10 | GF91.60-P-4080RF | |
| Component description for front SAM control unit | N10/6 | GF54.21-P-7010RF | |
| Component description for rear SAM control unit | N10/8 | GF54.21-P-7030RF | |
| Climate control control unit, component description | N22/1 | GF83.40-P-2250RF | |
| Rear climate control operating unit, component description | Model 205 up to model year 2019 with code 581 (Automatic climate control) Model 253 (except 253.99) up to model year 2020 with code 581 (Automatic climate control) N22/4 |
GF83.40-P-3050RF | |
| Component description for Electronic Stability Program control unit | Model 205 (except 205.012/013/047/053/054/147/212/213/247/25 3) up to model year 2019 Model 253 (except 253.353/354/953/954/99) up to model year 2020 N30/4 |
GF42.45-P-5119RF | |
| Model 205.012/013/047/053/054/147/212/213/247/25 3 up to model year 2019 Model 253.353/354/953/954 up to model year 2020 N30/4 |
GF42.45-P-5119RFH | ||
| Front climate control operating unit, component description | N58/1 | GF83.40-P-2260RF | |
| Component description for left front door control unit | N69/1 | GF72.29-P-6001RF | |
| Component description for right front door control unit | N69/2 | GF72.29-P-6009RF | |
| Component description for rear door control unit | Model 205.0/1/2 up to model year 2019 Model 253 (except 253.99) up to model year 2020 N69/3, N69/4 |
GF72.29-P-6021RF | |
| Component description for overhead control panel control unit | N70 | GF82.20-P-5216RF | |
| Component description for the electronic ignition lock control unit | N73 | GF80.57-P-6001RF | |
| Component description for steering column tube module control unit | N80 | GF54.21-P-6051RF | |
| Electric parking brake control unit, component description | Model 205, 253 with engine 177 up to model year 2019 N128 | GF42.20-P-5005RF | |
| Contents, function description of interior illumination (IBL) | GF82.20-P-0998RF |
