Correct Articulation Angle Of Propeller Shaft - AR41.10-P-0090LW

Model 205

MODIFICATION NOTES

27.09.2016	Bolt, propeller shaft intermediate bearing to frame floor assembly	Model 205	BA41.40-P-1001-01H
06.03.2018	Bolt, center reinforcement to frame floor assembly	Model 205	BA61.10-P-1003-01L
07.09.2018	Bolt, rear engine support to frame floor assembly	Model 205	BA22.10-P-1005-03E
07.09.2018	Schraube Motortrager hinten an Rahmenboden	Type 205	BA22.10-P-1005-03E

Courtesy of MERCEDES-BENZ USA

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA

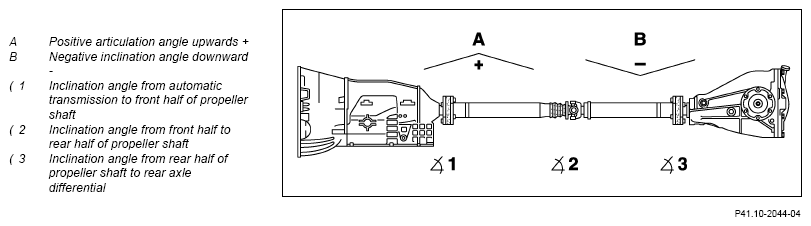

	Notes on measuring the drive shaft articulation angle		AH41.10-P-0002-01LF
	Remove/install
1	Lift vehicle on vehicle lift		AR00.60-P-1002LWG
2	Remove bottom center and rear engine compartment paneling	If the inclination angle (∠ 1) is out of tolerance.	AR61.20-P-1105LW
3	Correct inclination angle (∠ 1) at automatic transmission	If the inclination angle (∠ 1) is out of tolerance.
			AR41.10-P-0086-03LW
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		Model 205 with engine 177 Model 205 with engine 274, 276, 626, 651, 654Screw/bolt, rear engine support to frame floor assembly	*BA22.10-P-1005-03E
		Model 205 with engine 177 Model 205 with engine 274, 276, 626, 651, 654Rear engine mount on engine support	*BA22.10-P-1004-03E
		Front inclination angle of transmission relative to front propeller shaft (∠ 1)	*BE41.10-P-1001-01G
4	Install bottom center and rear engine compartment paneling	If the inclination angle (∠ 1) is out of tolerance.	AR61.20-P-1105LW
5	Support propeller shaft using mounting plate and major assembly mount	If the inclination angle (∠ 2) is out of tolerance.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
6	Remove center reinforcement above propeller shaft intermediate bearing	If the inclination angle (∠ 2) is out of tolerance.
7	Correct articulation angle (∠ 2) at propeller shaft intermediate bearing	If the inclination angle (∠ 2) is out of tolerance.
			AR41.10-P-0086-04LW
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		Bolt, propeller shaft intermediate bearing to frame floor assembly	*BA41.40-P-1001-01H
		Inclination angle of front propeller shaft relative to rear propeller shaft (∠ 2)	*BE41.10-P-1002-01G
8	Install center reinforcement above propeller shaft intermediate bearing	If the inclination angle (∠ 2) is out of tolerance. Bolt, center reinforcement to frame floor assembly	*BA61.10-P-1003-01L
9	Remove support plate and major assembly mount	If the inclination angle (∠ 2) is out of tolerance.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
10.1	Correct the articulation angle (∠ 3) at rear axle differential	Model 205 (except 205.386/387/486/487) If the inclination angle (∠ 3) is out of tolerance.
			AR41.10-P-0086-05LW
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		Rear axle differential to front adapter	*BA35.10-P-1005-01H
		Rear inclination angle of rear propeller shaft relative to rear axle differential (∠ 3)	*BE41.10-P-1003-01G
10.2	Correct the articulation angle (∠ 3) at rear axle differential	Model 205.386/387/486/487 If the inclination angle (∠ 3) is out of tolerance.
			AR41.10-P-0086-12MNA
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
		Rear inclination angle of rear propeller shaft relative to rear axle differential (∠ 3)	*BE41.10-P-1003-01G
		Bolt, rear axle differential to rear transverse bridge	*BA35.10-P-1006-01H
11	Carry out a check measurement again each time the inclination angle is corrected		AR41.10-P-0086LW
12	Lower vehicle on lifting platform		AR00.60-P-1002LWG

CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE

Number	Designation		Model 205 Except AMG	Model 205 AMG
BE41.10-P-1001-01G	Front inclination angle of transmission relative to front propeller shaft (∠ 1)	∠°	-0, 50...+0, 67	-0, 30...+0, 30

CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE

Number	Designation		Model 205 Except AMG	Model 205 AMG
BE41.10-P-1002-01G	Inclination angle of front propeller shaft relative to rear propeller shaft (∠ 2)	∠°	+0, 00...+1, 00	+0, 10...+0, 50

CHECK VALUES FOR PROPELLER SHAFT ARTICULATION ANGLE

Number	Designation		Model 205 Except AMG	Model 205 AMG
BE41.10-P-1003-01G	Rear inclination angle of rear propeller shaft relative to rear axle differential (∠ 3)	∠°	-1, 00...-0, 17	-0, 90...-0, 50

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation		Model 205
BA22.10-P-1004-03E	Rear engine mount on engine support	Nm	30

ENGINE MOUNT, ENGINE SUPPORT (ENGINE SIDE)

Number	Designation				Model 205
BA22.10-P-1005-03E	Screw/bolt, rear engine support to frame floor assembly	M10x22	Silver	Nm	-
		M10x22	Black	Nm	-
		M10x24	Black	Nm	-
		M10x38		Nm	-
		M10x20	Stage 1	Nm	30
		M10x20	Stage 2	Nm	50

REAR AXLE CARRIER

Number	Designation				Model 205
BA35.10-P-1005-01H	Rear axle differential to front adapter	Rear axle differential (steel)		Nm	65
		Rear axle differential (aluminum)	Stage 1	Nm	40
		Rear axle differential (aluminum)	Stage 2	∠°	45

REAR AXLE CARRIER

Number	Designation		Model 205
BA35.10-P-1006-01H	Bolt, rear axle differential to rear transverse bridge	Nm	170

PROPELLER SHAFT INTERMEDIATE BEARING

Number	Designation		Model 205
BA41.40-P-1001-01H	Bolt, propeller shaft intermediate bearing to frame floor assembly	Nm	25

FRAME FLOOR ASSEMBLY

Number	Designation			Model 205
BA61.10-P-1003-01L	Bolt, center reinforcement to frame floor assembly	M10	Nm	23
BA61.10-P-1003-01L	Bolt, center reinforcement to frame floor assembly	M6	Nm	8
