Replace Complete Rear Fender - Ar63.50-P-1400CLW

Model 205.3

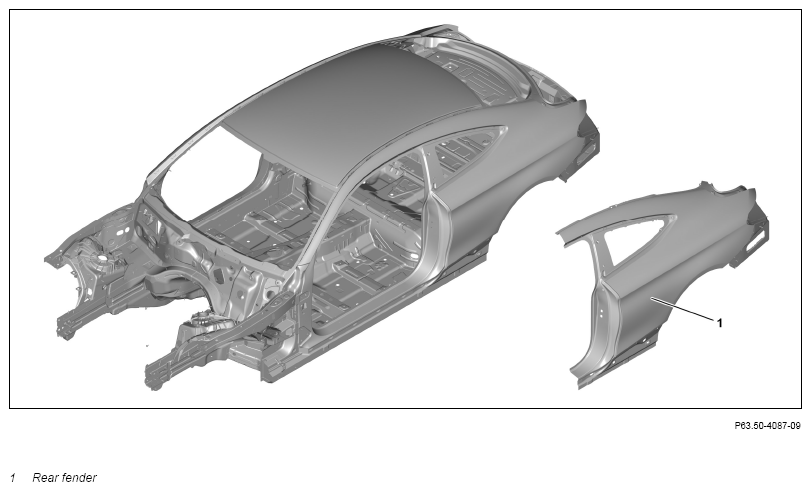

Fig 1: Quarter Panel Component Location (Model 205.3)
G14805350DANGERDANGERCAUTIONREMOVINGIMPORTANTREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSIMPORTANTREFER TO SPECIAL TOOLSIMPORTANTINSTALLINGDANGERREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSREFER TO SPECIAL TOOLSIMPORTANTHAND-HELD TESTERHAND-HELD TESTERHAND-HELD TESTERHAND-HELD TESTERSPECIAL TOOLIMPORTANTIMPORTANTIMPORTANTIMPORTANTCourtesy of MERCEDES-BENZ USA
DANGER Risk of death  caused by vehicle slipping or toppling off of the lifting platform. Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. AS00.00-Z-0010-01A
DANGER Risk of explosion  caused by fuel igniting, risk of poisoning caused by inhaling and swallowing fuel as well as risk of injury to eyes and skin caused by contact with fuel. No fires, sparks, open flames or smoking. Pour fuels into suitable and appropriately marked containers only.
Wear protective clothing when handling fuel.
AS47.00-Z-0001-01A
CAUTION Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels.
AS00.00-Z-0017-01A
Notice General information on body repair   AH60.00-P-0001-01KOA
Notice Information on preventing damage to electronic components due to electrostatic discharge   AH54.00-P-0001-01A
Notice Pretreatment of bonding surfaces   AH60.00-P-0008-01SX
  Notes on acoustic foam and structural foam in the vehicle   AH60.00-P-0039-01LW
  General information on MB materials   AH98.00-P-9409-03A
REMOVING Remove
1 Remove detachable parts in area to be repaired
2 Cover all detachable parts remaining on vehicle with spark protection blankets IMPORTANT When replacing the right rear fender (1), the standard tank lock must be installed and the filler neck covered with a welding protection blanket.
3 Separate rear fender (1)   AR63.50-P-1400-02CLW
REFER TO SPECIAL TOOLS 000 588 00 84 00 Heat gun   WS54.00-P-0049B
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system IMPORTANTCommercially available devices/tools
Round wire brush
Body power jigsaw
Spot weld milling machine
Wet/dry vacuum cleaner
WS60.00-P-0023K
    Primer stick *BR00.45-Z-1012-07A
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
4 Prepare rear fender (1)   AR63.50-P-1400-03CLW
REFER TO SPECIAL TOOLS 000 588 01 23 00 Body straightening system IMPORTANTCommercially available devices/tools
Round wire brush
Body power jigsaw
WS60.00-P-0023K
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
INSTALLING Install
DANGER The high voltage used for electric welding presents a lethal hazard. Risk of explosion  from welding in areas close to highly inflammable materials. Risk of injury  from weld splatter and UV-light when welding. Risk of poisoning  from inhaling welding gases Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. AS00.00-Z-0007-01A
Notice Measures for preventing damage to components when performing electric welding and soldering work   AH60.00-P-0001-02A
  General information on riveting   AH60.00-P-0003-01N
5 Install rear fender (1)
REFER TO SPECIAL TOOLS 000 588 02 84 00 Welder   WS60.00-P-0022K
      AR63.50-P-1400-04CLW
REFER TO SPECIAL TOOLS 000 588 01 84 00 Welder   WS60.00-P-0021K
REFER TO SPECIAL TOOLS 000 588 02 84 00 Welder   WS60.00-P-0022K
    IMPORTANTCommercially available devices/tools
Round wire brush
Manual temporary fastener 6.35 mm
Blind rivet gun (minimum pull-off force 19 kN)
Wet/dry vacuum cleaner
AR60.00-P-0700-01LW
    HAND-HELD TESTER Front door to sidewall *BE60.00-P-1007-01BB
    HAND-HELD TESTER Trunk lid to fender at rear, top *BE60.00-P-1012-01BB
    HAND-HELD TESTER Rear fender to taillamp *BE60.00-P-1015-01BB
    HAND-HELD TESTER Fuel filler flap *BE60.00-P-1016-01BB
    Zinc dust paint suitable for spot welding *BR00.45-Z-1001-07A
    White sealing compound, 310 ml, DBL 6069.20 *BR00.45-Z-1003-01A
    Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1035-13A
    Countersunk-head blind rivet Z1 6.4 x 14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) *BR00.45-Z-1043-13A
    Parts kit for 2-component adhesive for body *BR00.45-Z-1162-02A
    SPECIAL TOOL Feeler gauge Fig 2
6 Clean welds and sheet metal flanges IMPORTANTCommercially available devices/tools
Round wire brush

7 Remove spark protection blankets
8 Clean repair area IMPORTANTCommercially available devices/tools
Wet/dry vacuum cleaner

9 Prime repair area using primer filler
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting IMPORTANT Use only primer fillers approved by manufacturer. See guidelines for paint technology in the workshop portal. AH98.00-P-0003-01A
10 Seal seam following repairs   AR97.10-P-4000LW
11 Paint repair areas and adjacent surfaces
Notice Notes on paintwork repairs   AH98.00-P-9408-02A
  General information on operation items and work procedures for painting IMPORTANT Only use paints approved by the manufacturer. See guidelines for paint technology in the workshop portal. AH98.00-P-0003-01A
12 Add cavity preserving agent   AR97.20-P-1500LW
13 Install all detachable body components in area to be repaired
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3
BE60.00-P-1007-01BB Front door to sidewall Dimension "H1" mm 3, 5 (± 0, 5)
For picture, see AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3
BE60.00-P-1012-01BB Trunk lid to fender at rear, top Dimension "K" mm 3, 5 (± 1)
Dimension "K1" mm 4 (+1, 5/-1)
For picture, see AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3
BE60.00-P-1015-01BB Rear fender to taillamp Dimension "N" mm 1 (± 1)
For picture, see AR60.00-P-0700-01LW
CHECK VALUES FOR GAP DIMENSIONS

Number Designation Model 205.3
BE60.00-P-1016-01BB Fuel filler flap Dimension "O" mm 2 (± 0, 5)
For picture, see AR60.00-P-0700-01LW
Fig 2: Feeler Gauge (129 589 03 21 00)
G11129130Courtesy of MERCEDES-BENZ USA
REPAIR MATERIALS

Number Designation Order number
BR00.45-Z-1001-07A Zinc dust paint suitable for spot welding A 000 986 34 42
BR00.45-Z-1003-01A White sealing compound, 310 ml, DBL 6069.20 A 001 989 63 20
BR00.45-Z-1012-07A Primer stick A 000 986 27 50
BR00.45-Z-1035-13A Blind rivet Y1 6.4 x 12 (clamping range 1 mm to 3.5 mm, draw-off strength min. 15.5 kN) A 000 991 76 32
BR00.45-Z-1043-13A Countersunk-head blind rivet Z1 6.4 x 14.0 (clamping range 1.5 mm to 3 mm, draw-off strength min. 15.5 kN) A 000 991 82 32
BR00.45-Z-1162-02A Parts kit for 2-component adhesive for body A 012 989 17 71
