Body Repair Notes On Acoustic Foam And Structural Foam In The Vehicle - Ah60.00-P-0039-01LW
Model 205

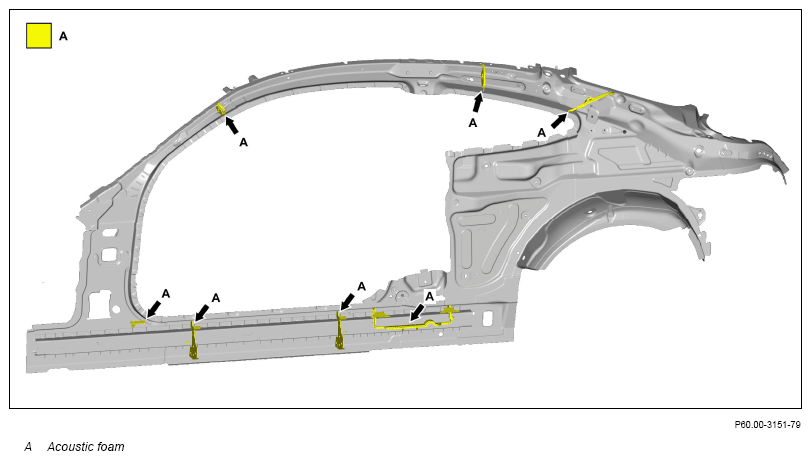

Foam items in area of sidewall (shown on left side of vehicle)
Acoustic foam part replacements are inserted using sealant at all the cleaned body contact surfaces.
Structural foam pieces must be replaced if they cannot be left in the vehicle undamaged. 2-component structural foam adhesive is used as filling foam and to fit the carrier parts.
 Courtesy of MERCEDES-BENZ USA
|

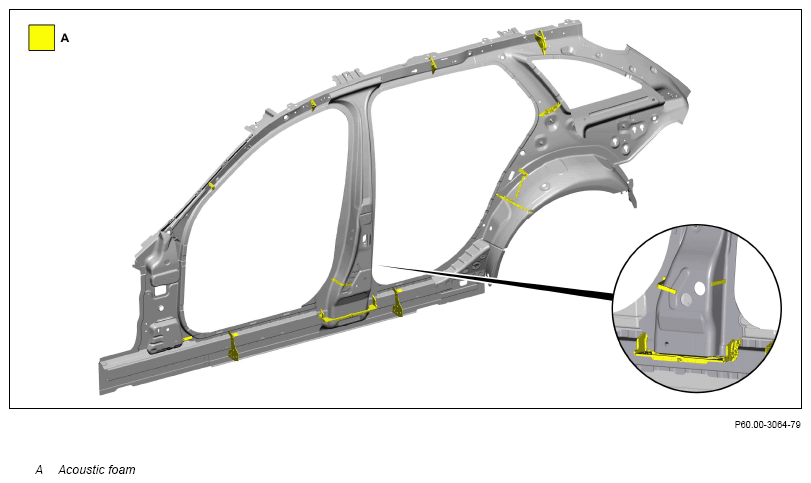

Model 205.0/1
 Courtesy of MERCEDES-BENZ USA
|

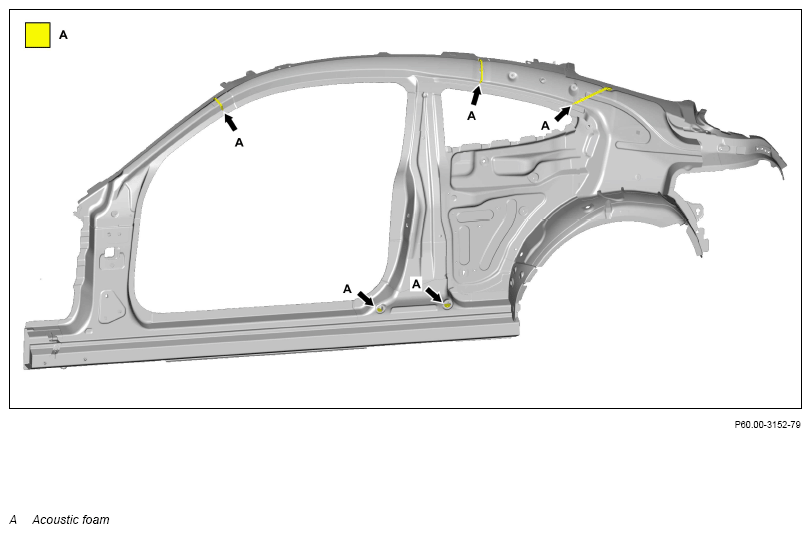

Model 205.2
 Courtesy of MERCEDES-BENZ USA
|

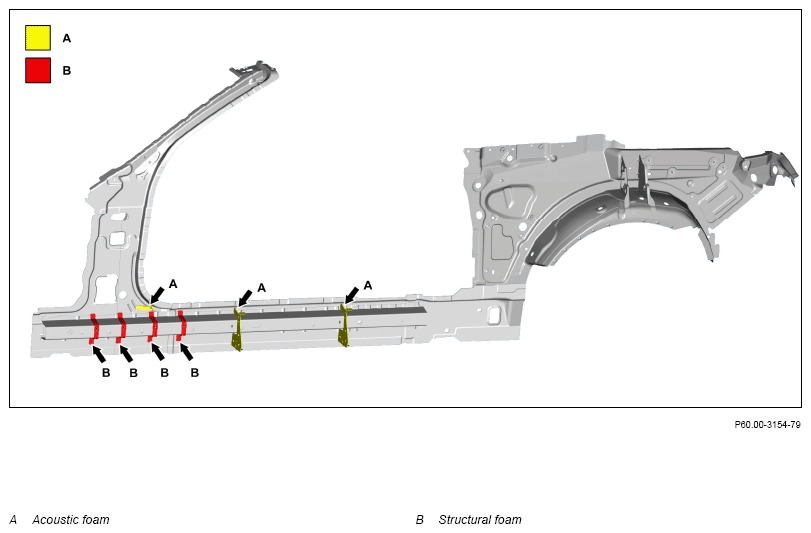

Model 205.3
 Courtesy of MERCEDES-BENZ USA
|

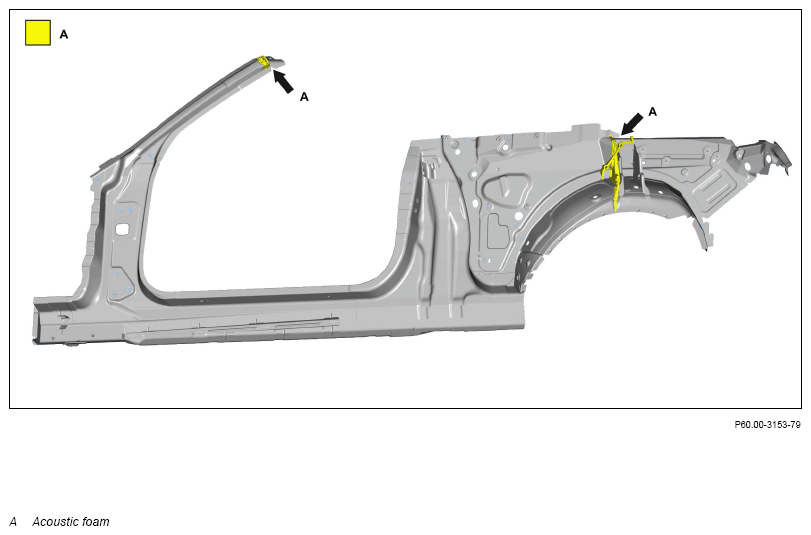

Model 205.3
 Courtesy of MERCEDES-BENZ USA
|

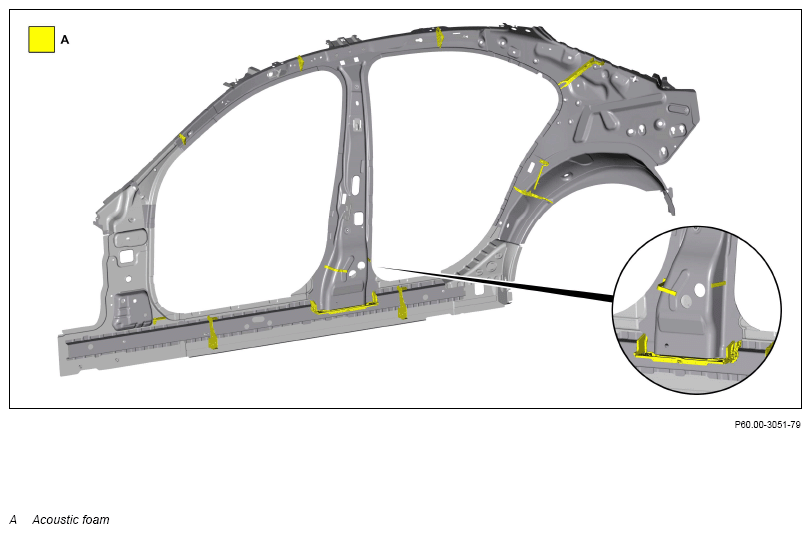

Model 205.4
 Courtesy of MERCEDES-BENZ USA
|
Model 205.4
