Remove/Install Left Or Right Rear Axle Speed Sensor - AR42.40-P-0820LW

Model 205

Model 213

Model 253

Model 293

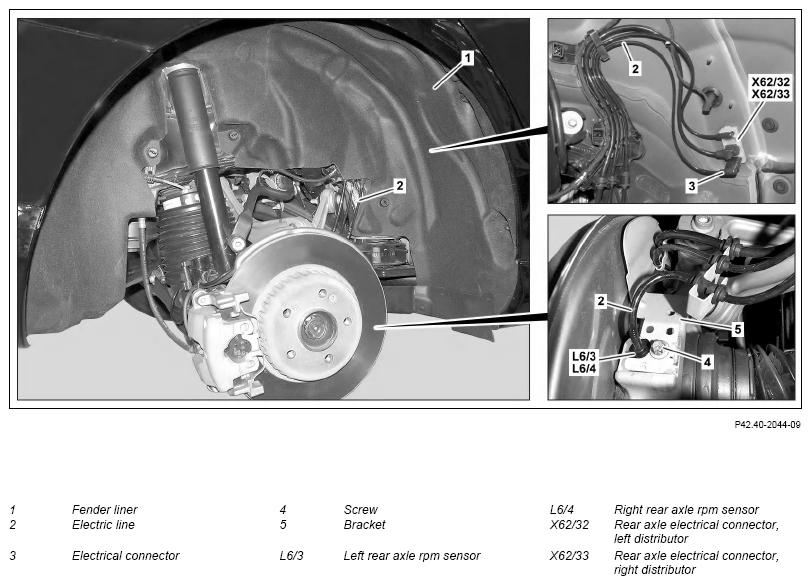

Fig 1: Rear Axle Speed Sensor Component Location - Model 205

Courtesy of MERCEDES-BENZ USA

Shown on model 205

Shown on model 213

Courtesy of MERCEDES-BENZ USA

	Risk Of Injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr Repair Panels.	AS00.00-Z-0017-01A
Notice	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
Notice	Notes on self-locking nuts and bolts		AH00.00-P-0001-01KOA
	Notes On Safety-Relevant Components		AH00.00-Z-0019-01A
	Remove/Install
1.1	Remove rear wheel.	Model 205, 253, 293	AR40.10-P-1102A
1.2	Raise vehicle.	Model 213	AR00.60-P-1006A
2	Release fender liner (1) in front area until electrical connector (3) is accessible and electric line (2) can be exposed.	Model 205, 253, 293	AR88.10-P-1400LW
3.1	Disconnect electrical connector (3) from rear axle left distributor electrical connector (x62/32) or rear axle right distributor electrical connector (X62/33).	Model 205 Model 253 Model 293
3.2	Release and disconnect electrical connector (6).	Model 213
4	Unscrew bolt (4).	Bolt, RPM sensor to wheel carrier	*BA42.30-P-1001-02K

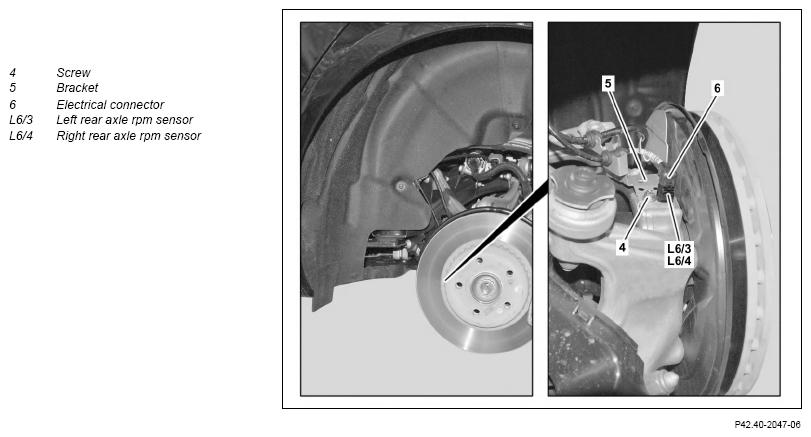

5	Remove holder (5) from left rear axle RPM sensor (L6/3) or right rear axle RPM sensor (L6/4) and hook up to one side.	Model 205, 213, 253 (except 253.388/389/988/989), 293
6.1	Expose electric line (2) of left rear axle RPM sensor (L6/3) or right rear axle RPM sensor (L6/4) and remove left rear axle RPM sensor (L6/3) or right rear axle rpm sensor (L6/4).	Model 205, 253, 293
6.2	Remove left rear axle rpm sensor (L6/3) or right rear axle RPM sensor (L6/4).	Model 213
7	Install in the reverse order.
8	Read out fault memory using diagnostic system and delete, if necessary.
		Model 205, 213, 253	AD00.00-P-2000-04B
		Model 293	AD00.00-P-2000-06FR
