Remove/Install Fender Liner In Rear Fender - AR88.10-P-1400LW

Model 205

Model 253

Model 293

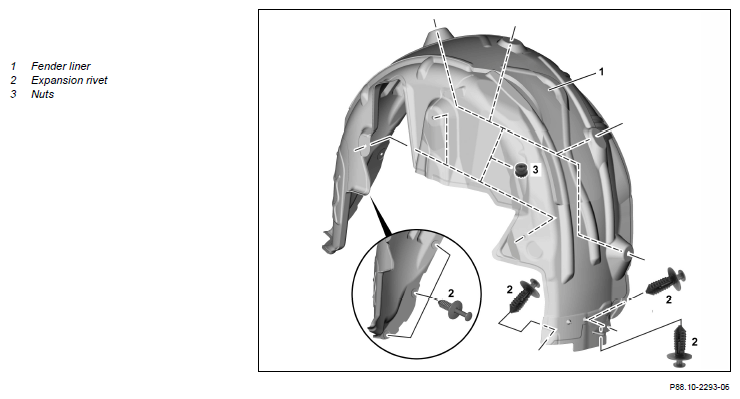

Shown on fender liner (1), model 205

Fig 1: Rear Fender Liner Component Location - Model 205

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Raise vehicle.	Model 205 Model 253 Model 293
		Model 205 Model 253	AR00.60-P-1002LWG
2	Remove expansion rivets (2).
3	Unscrew nuts (3).
4	Pull outer edge of the fender liner (1) inward out of the wheel arch lip and remove fender liner (1).
5	Install in the reverse order
