Remove/Install Paneling On B-Pillar - AR68.30-P-4700CLW

Model 205.3

MODIFICATION NOTES

09.05.2016

Screw, front belt end fitting

BA91.40-P-1003-01U

Shown on left side of vehicle

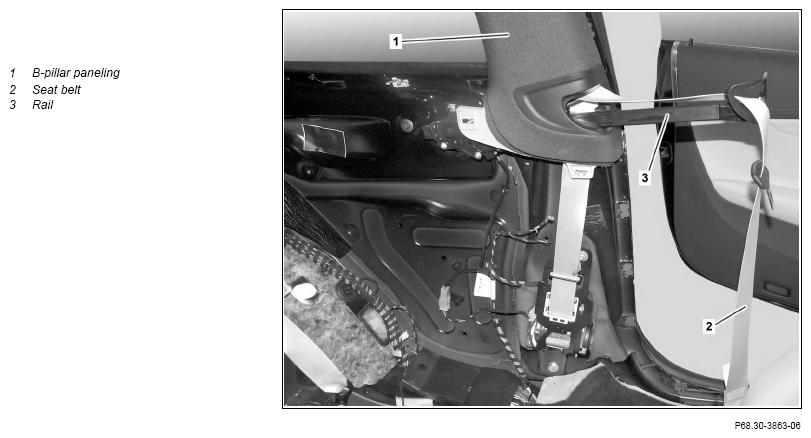

Fig 1: B-Pillar Paneling Component Location - Model 205.3 (Shown On Left Side)

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Move left and right front seat toward front to end position
2	Remove rear passenger compartment side trim panel		AR68.30-P-4780CLW
3	Remove belt end fitting from front seat belt (2)	Bolt, front belt end fitting	*BA91.40-P-1003-01U
4	Completely pull out rail (3) and extend seat belt (2)	Uniformly pull out rail (3). Otherwise the belt extender can be damaged.
5	Unclip B-pillar paneling (1) and remove
6	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation			Model 205.3
BA91.40-P-1003-01U	Bolt, front belt end fitting		Nm	30
		M10x12	Nm	-
		M10x16	Nm	-
