Remove/Install Headbag - AR91.60-P-0697LWR

Model 205.4

Shown On Left Side Of Vehicle

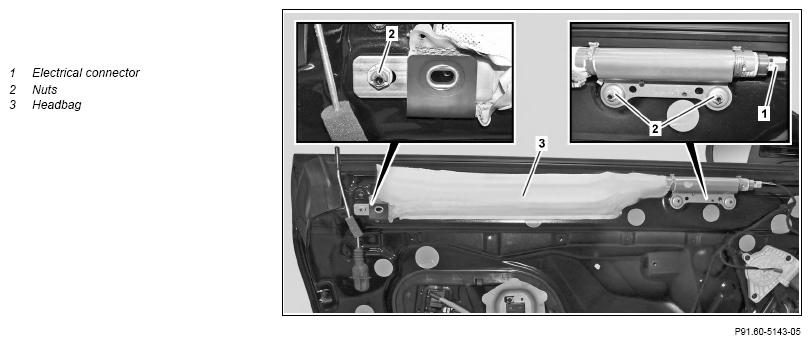

Fig 1: Headbag Component Location - Model 205.4

Courtesy of MERCEDES-BENZ USA

	Risk of injury  during testing and repair operations related to pyrotechnical components	Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts.	AS91.00-Z-0008-01A
Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Information, assessment and legal requirements when working with, handling and storing pyrotechnical components		AH91.00-Z-0000-10A
	Remove/install
1	Remove door panel from front door		AR72.10-P-1000LW
2	Disconnect battery ground line		AR54.10-P-0003LW
3	Release and disconnect electrical connection (1)	Make sure that electrical connector (1) engages properly.
4	Unscrew nuts (2) and remove headbag (3)
5	Install in the reverse order
6	Check Supplemental Restraint System (SRS) with diagnostic system	When replacing headbag (3).
			AD00.00-P-2000-04B
