Remove/Install Seatbelt Extender - AR91.45-P-1000CLW

Model 205.3

Courtesy of MERCEDES-BENZ USA

Shown on left side of vehicle

	Remove/install
1	Remove left or right side paneling in rear		AR68.30-P-4780CLW
2	Remove belt end fitting of front seat belt	Bolt, front belt end fitting	*BA91.40-P-1003-01U

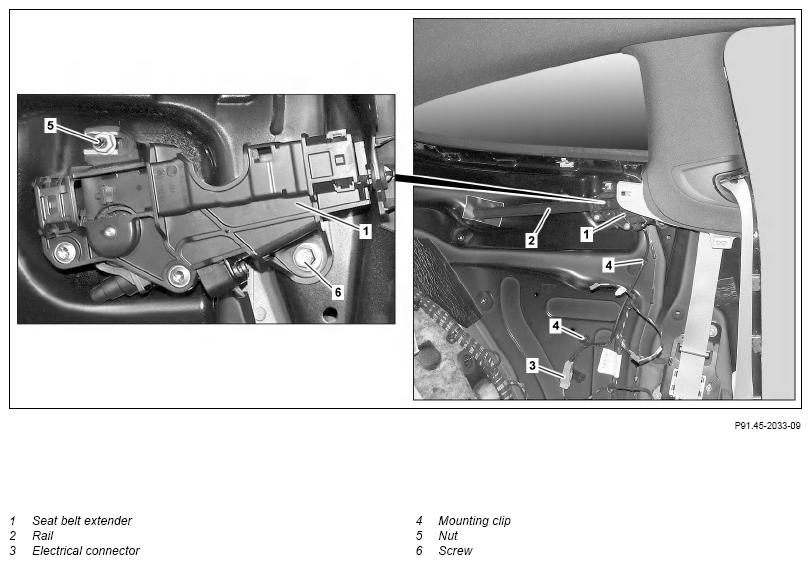

3	Completely pull out rail (2) of belt extender (1) and extend seat belt	Pull out rail (2) evenly. Otherwise the belt extender (1) can be damaged.
4	Disconnect electrical connection (3)
5	Unclip retaining clips (4)	Clip remover	Fig 1
6	Unscrew nut (5)
7	Remove screw/bolt (6) and take off belt extender (1) IZOD	Ensure that the belt extender (1) is seated correctly.
8	Install in the reverse order

SEAT BELTS/EMERGENCY TENSIONING RETRACTORS

Number	Designation			Model 205.3
BA91.40-P-1003-01U	Bolt, front belt end fitting		Nm	30
		M10x12	Nm	-
		M10x16	Nm	-

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
