Remove/Install Left Rear Seat Backrest Cover - AR91.18-P-1874LW
Model 205.0/1
with code 287 (Through-loading feature)
Model 205.2
Model 205.3
Model 253, 293
Shown on MODEL 205.2
| Remove/install | |||
| 1 | Remove pivot bearing of left seat backrest with left rear passenger compartment seat backrest inclination switch. | AR91.29-P-1772LW | |
| 2 | Remove head restraint guides. | AR91.16-P-1775LW | |
| 3 | Unclip cover (11) and remove. | Model 205.2 Model 253, 293 |
|
| 4 | Unclip cover (5). | Model 205.0/1 with code 287 (Through-loading feature) Model 205.2 Model 253, 293 |
|
| Fig 1 | |||

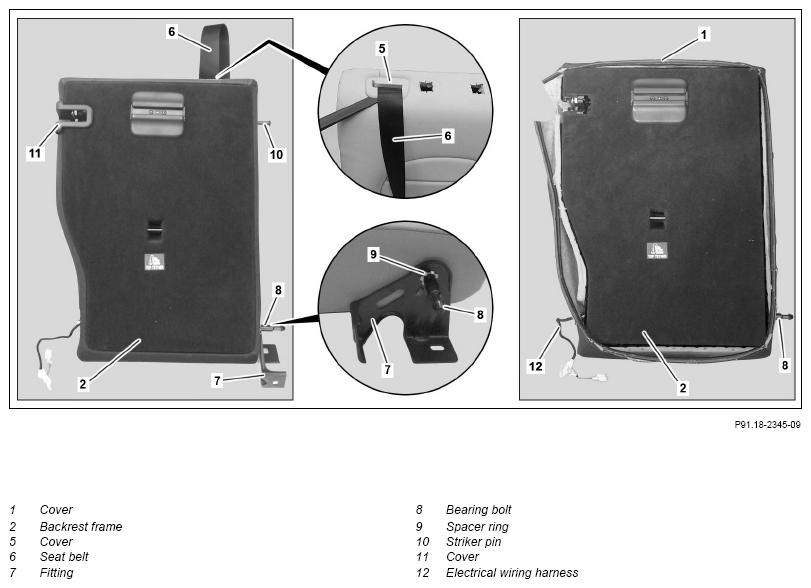

| 5 | Remove fitting (7) from bearing pin (8). | Do not skew fitting (7). Otherwise the spacer ring (9) may be damaged. |
|
| 6 | Unhook cover (1) from seat backrest frame (2) all the way around. | Press on cover (1) once again all around the outside after hooking it in completely. |
|
| Fig 2 | |||
| 7 | Guide electrical wiring harness (12) through cover (1). | Model 205.2 Model 253, 293 |
|
| 8 | Remove seat backrest frame (2). | ||
| 9 | Slip cover (1) over seat backrest padding (3) and guide over bearing pin (8) and striker pin (10) while doing so. | Carefully guide cover (1) first over bearing pin (8) and striker pin (10). Otherwise the cover (1) may be damaged. |
|
| 10 | Guide cover (5) with seat belt (6) through cover (1). | Model 205.0/1 with code 287 (Through-loading feature) Model 205.2 Model 253, 293 |
|

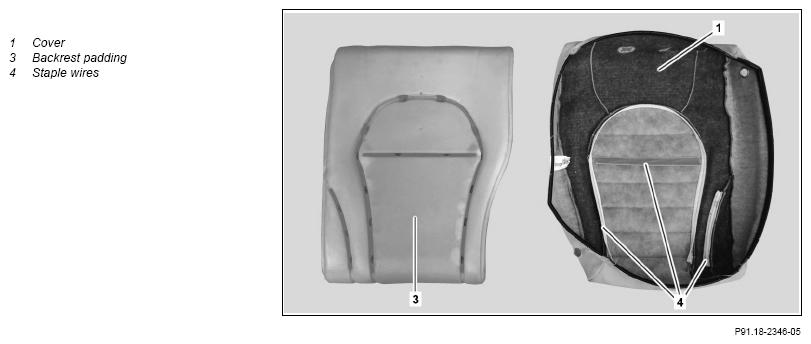

| 11 | Unclip staple wires (4) from seat backrest padding (3) starting from the outside working towards the inside. | Fig 3 | |
| 12 | Remove cover (1) from seat backrest padding (3). | The cover (1) must be aligned centrally on the seat backrest padding (3). |
|
| 13 | Pull staple wires (4) out of hose straps of cover (1). | When replacing the cover (1). | |
| 14 | Install in the reverse order |
