Remove/Install Cover For Backrest At Front Seat - AR91.10-P-8656LWX
Model 205, 213, 253
with code 555 (AMG-Performance Seat)
| Remove | |||
| 1 | Remove seat backrest padding (2) with cover (1). | AR91.10-P-0003LWX | |
| 2 | Remove AMG badge. | ||
| 3 | Pull cover (1) over seat backrest padding (2). | ||

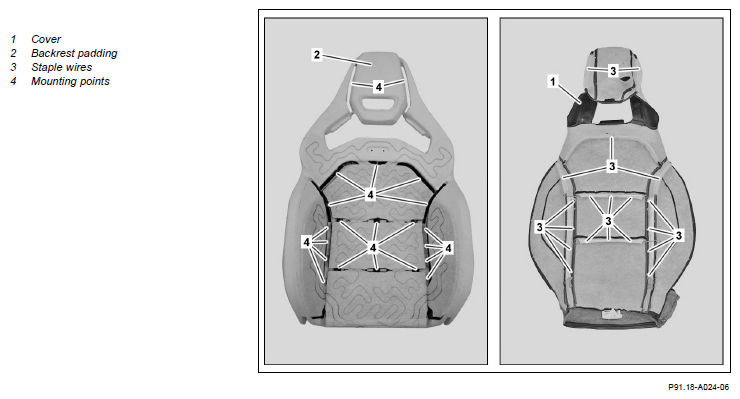

| 4 | Loosen staple wires (3) at attachment points (4). | AR91.10-P-8656-03LW | |
| Fig 2 | |||
| Fig 1 | |||
| 5 | Remove cover (1) from seat backrest padding (2). | ||
| Install | |||
| 6 | Position cover (1) centrally on seat backrest padding (2) and align seams of cover (1) in notches of seat backrest padding (2). | ||
| 7 | Fasten staple wires (3) at attachment points (4). | AR91.10-P-8656-03LW | |
| Fig 2 | |||
| Fig 1 | |||
| 8 | Pull cover (1) over seat backrest padding (2). | ||
| 9 | Fasten AMG badge. | ||
| 10 | Install seat backrest padding (2) with cover (1) | AR91.10-P-0003LWX |
