Unfasten/Fasten Cover For Seat Backrest On Front Seat - AR91.10-P-8656-03LW

Model 205, 238, 253

Model 206, 254

Model 213, 257, 290

Model 223

Model 295, 296, 297

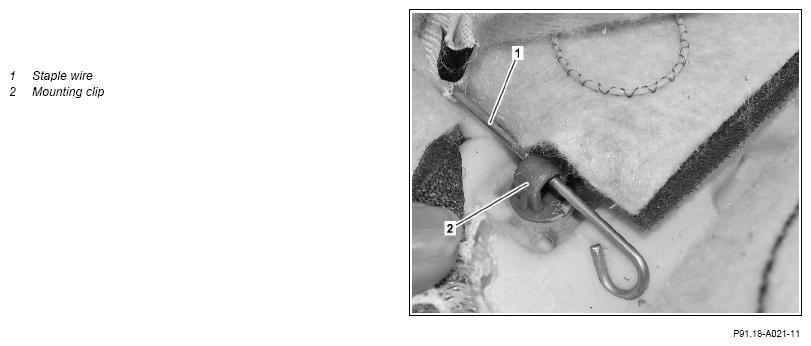

Fastening type A

Courtesy of MERCEDES-BENZ USA

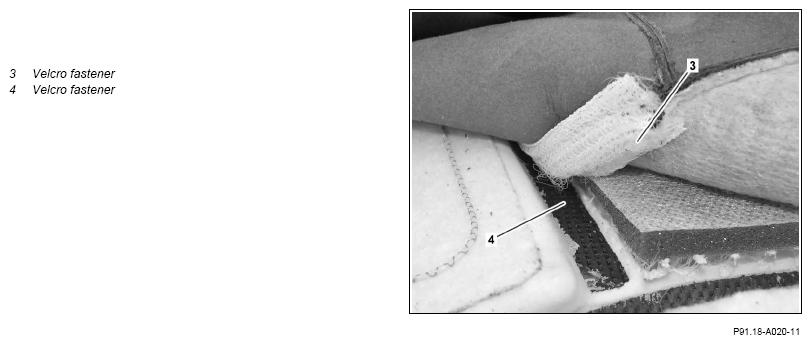

Fastening type B

Courtesy of MERCEDES-BENZ USA

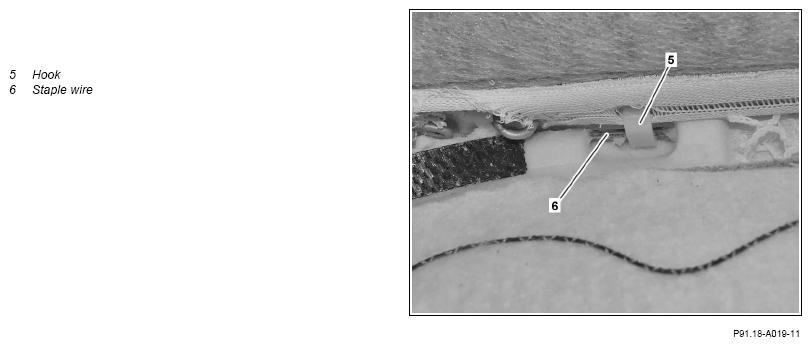

Fastening type C

Courtesy of MERCEDES-BENZ USA

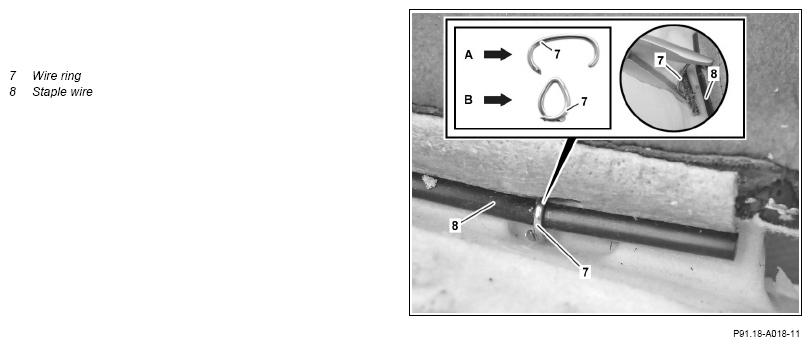

Fastening type D

Courtesy of MERCEDES-BENZ USA

Release

1. Unhook staple wire (1) at retaining clip (2) with dismantling tool.

   For covers with fastening type A

2. Loosen velcro fastener (3) from velcro fastener (4).

   For covers with fastening type B

3. Unhook hook (5) on staple wire (6).

   For covers with fastening type C

4. Remove wire ring (7) on staple wire (8).

   For covers with fastening type D

   Carefully remove residue from wire rings (7). Otherwise damage may occur.

   Mount

5. Hook in staple wire (1) at retaining clip (2) with dismantling tool.

   For covers with fastening type A

6. Fasten velcro fastener (3) on velcro fastener (4).
7. Hook in hook (5) on staple wire (6).

   For covers with fastening type C

8. Fasten staple wire (8) with wire ring (7) on eyelet of seat backrest padding.

   For covers with fastening type B

   For covers with fastening type D

   Insert open wire ring (7) (arrow A), as shown, into padding clip pliers and close completely by pressing together (arrow B).
