Remove/Install Seat Belt (Front Seat) - AR91.40-P-1010CLX
Model 205.3
except code 299 (PRE-SAFE®)
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury. Injury may result when the tension in the spring in the automatic belt retractor is released. | Never disassemble automatic belt retractors. | AS91.00-Z-0002-01A | |
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Remove/install | |||
| 1 | Remove B-pillar paneling | AR68.30-P-4700CLW | |
| 2 | Disconnect battery ground line | AR54.10-P-0003LW | |

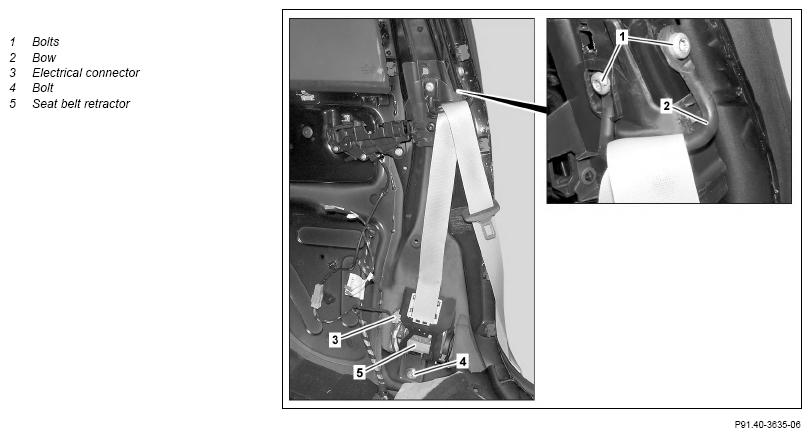

| 3 | Remove screws/bolts (1) and take off bracket (2) | *BA91.40-P-1002-01U | |
| 4 | Disconnect electrical connection (3) | ||
| 5 | Unscrew bolt (4) | *BA91.40-P-1001-01U | |
| 6 | Remove seat belt retractor (5) from B-pillar | ||
| 7 | Dispose of removed belt retractor (5) properly | When replacing belt retractor (5). | |
| 8 | Install in the reverse order |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.3 | |
|---|---|---|---|
| BA91.40-P-1001-01U | Bolt, front seat belt retractor | Nm | 30 |
SEAT BELTS/EMERGENCY TENSIONING RETRACTORS
| Number | Designation | Model 205.3 | |
|---|---|---|---|
| BA91.40-P-1002-01U | Bolt, front belt guide bracket | Nm | 30 |
